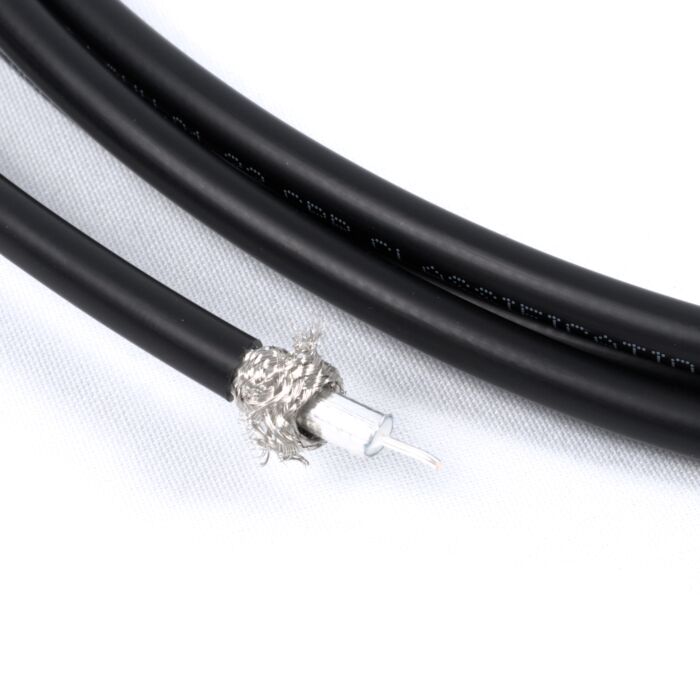

Webro WF4000 4K Ultra 12G HD-SDI 75ohm Coaxial Cables LSNH Black

Product Construction

• Alternative to Belden : 4694ANH
• Conductor Material : Silver Plated Copper
• Conductor Stranding : Solid, 1/1.02mm
• Dielectric Material : Foam Polyethylene
• Dielectric Diameter : 4.57mm ± 0.15
• Screen Material & Coverage 1 : Overall Bonded Aluminium Foil, Coverage >100%
• Screen Material & Coverage 2 : Tinned Copper Wire Braid, Coverage 95% ± 3
• Sheath Material : Low Smoke Non-Halogen (LSNH)
• Sheath Colour : Black

Mechanical Characteristics

• Overall Diameter : 6.95mm ± 0.2mm
• Temperature Range Fixed : -15°C to +70°C
• Flexing : -5°C to +70°C
• Bend Radius : 10 x Overall Diameter
• Weight : 68 kg/km

Electrical Characteristics

• Inner Conductor DC Resistance : ≤ 20.9 Ω/km @ 20°C
• Outer Conductor DC Resistance : ≤ 9.0 Ω /km @ 20°C
• Characteristic Impedance : 75 Ω ± 2
• Nominal Capacitance : 52 pF/m ± 3
• Velocity of Propagation : 84.5%
• Inductance : 0.35µH/m
• Nominal Delay : 3.95 ns/m
