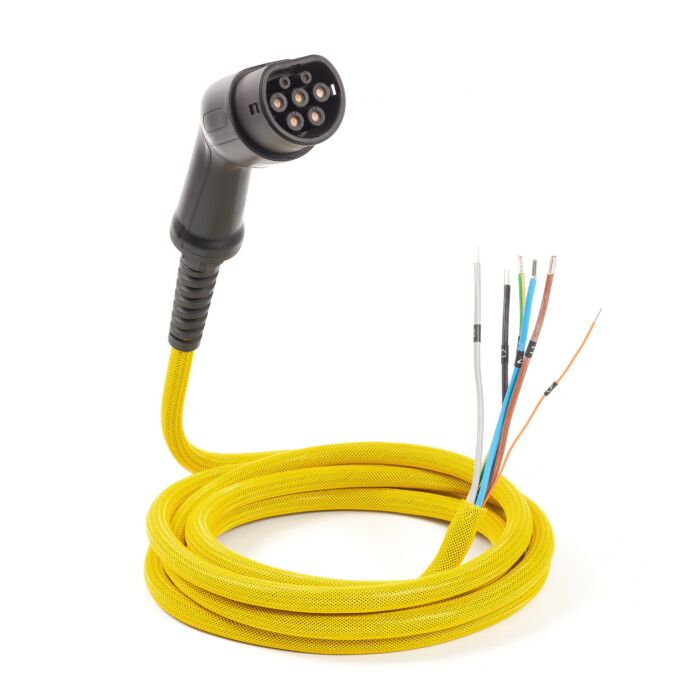

Viper-Custom – 22kw Type 2 EV Charging Cable – Tethered - Multiple Colour and Lengths Available

Description

Take Charge of connecting your EV to the grid with our ‘Viper-Custom’ EV charging cables. Customise the length and colour you need using the drop-down menus above. Our ‘Remix-Braiding’ is resistant to chemical degradation, UV radiation, abrasion, and is available in a vast array of head-turning colours. Exclusively available at VIPER-EV.

This cable has a Type 2 EV connector at one side only (vehicle connector). They should only be used as direct replacements for ‘Tethered’ cables on 3 phase EV wall chargers. Reasons for replacing could be either a damaged cable, or to increase the length of the supplied cable, extending the reach of your wall charging point.

Viper-Custom cables are Made to Order, so please allow 5-7 days for delivery within the UK. Please allow 5 days for dispatch if ordering from outside of the UK.

Please Note. These are not compatible with ‘Tesla Gen 3 Wall Connector’ charge-points

Features

• Made in Nottingham UK
• Choose from 25cm to 25m cable length
• Compatible with integrated car & charge-point locking mechanisms
• 3 Phase up to 32amps (22kW) @ 400v/415v
• Single Phase up to 32amps (7.4kW) @ 230v/240v
• Flexible and UV stable cable
• Integral cable strain relief for maximum durability
• Resin filled connector eliminates water ingress and offers unrivalled cable retention
• Viper-Remix Braiding is resistant to chemical degradation, UV radiation, and abrasion
• Cable and connector can withstand being run over
• Complimentary canvas carry bag included

Standards

• Type 2 Socket (car). According to IEC 62196-2
• H07BZ5-F Cable. 5core 6mm² (L1,L2,L3,N,E) + 0.5 mm² (CP). According to IEC 62893
• Assembly and Testing. According to IEC 62196-1
• IP Protection Class: IP55 when connected
• Viper-Remix Braiding is FMVSS 302 Approved
• UKCA & CE Certified

Technical Specification

• Connector housing: Thermoplastic
• Max 32amp Rated (22kW)
• Operating Temperature: -30℃ to +50℃
• Bare copper ends are supplied ferruled and marked for easy identification and wiring
• Cable and connector can be run over, tested to 2500kg (2.5 tons) on concrete with only superficial damage
• Viper-Remix Braiding is Halogen Free, no toxic or corrosive gases are released in a fire
