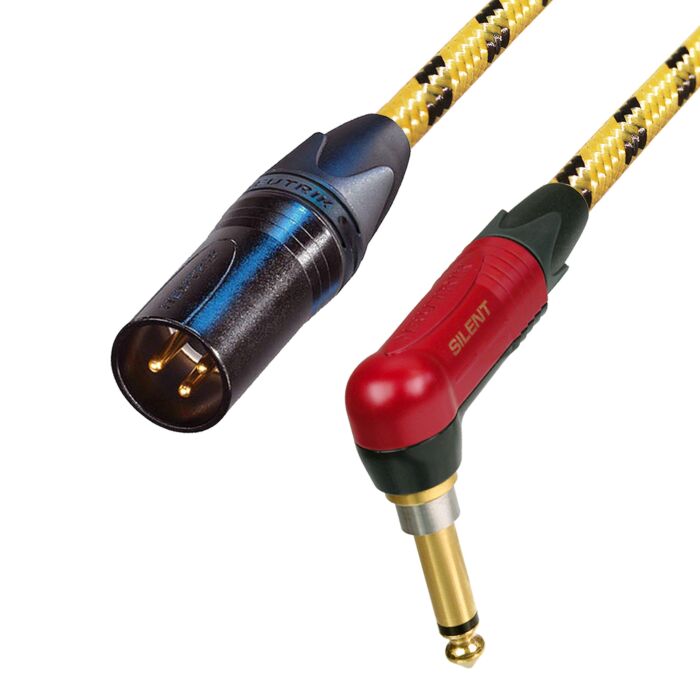

Vintage SILENT Mono Jack to Male XLR lead. Neutrik Guitar Di Mixer Cable
Multibuy discounts calculated at checkout
An Unbalanced Male XLR to Jack lead for linking your guitar to a DI box, effects, etc or for connecting straight into a mixing desk. Tough components from Neutrik and Sommer.
An Unbalanced Male XLR to Jack lead for linking your guitar to a DI box, effects, etc or for connecting straight into a mixing desk. Tough components from Neutrik and Sommer.
An Unbalanced Male XLR to Jack lead for linking your guitar to a DI box, effects, etc or for connecting straight into a mixing desk. Tough components from Neutrik and Sommer.
Problems with ground loops and hums can arise using balanced leads in unbalanced situations, so this range of cables cures these problems. They are also a snip of the price compared to their balanced sisters.
These leads are cleverly wired to improve the signal quality when connecting an instrument to a balanced input. Our method is tried and tested by studios and musicians around the world, including some big names such as 'Vibey Studios' in France. To do this we use a 2 core and screen cable, and wire the unused pin inside the XLR to the ground inside the jack. Its very simple, and very effective! Please ask should you require any other wiring to suit your requirements.
Delivery Speed | Made to Order - Next Day Delivery Available |
---|---|
Cable Capacitance | Capac cond/shield - per 1 m - 115 pF |
Cable Resistance | Cond resistance per 1 km< 55 Ohm |
Cable Conductor | 2 x 0.34 mm2 (AWG - 22) / Copper strand per conductor - 19 x 0.15 mm |
Cable Screening | - |
Cable Jacket | Jacket diameter - PVC 6.5 mm - Over braided in vintage tweed fabric |
Overall Diameter | - |
Cable Brand | Sommer |
Application | Tour & Studio Grade |
Contact Material | Gold Plated |
Number of Contacts | 3 Pole |
