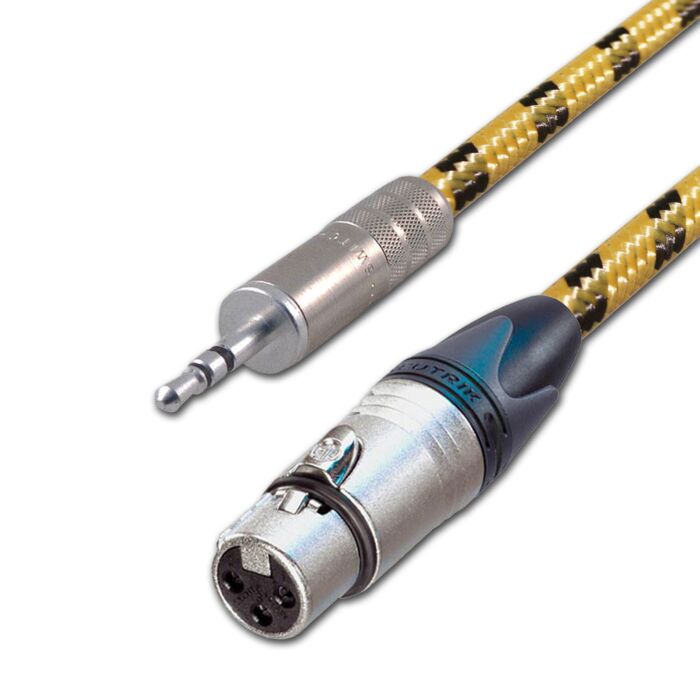

Pseudo Balanced Female XLR to 3.5mm Stereo Mini Jack Lead. Braided Mic AUX Cable
Multibuy discounts calculated at checkout
This is a Pro quality lead designed to connect a microphone or balanced device to a stereo input. The mono signal from the XLR will be split/duplicated onto both the Left and Right channel of the mini jack.
This is a Pro quality lead designed to connect a microphone or balanced device to a stereo input. The mono signal from the XLR will be split/duplicated onto both the Left and Right channel of the mini jack.
These leads are cleverly wired to improve the signal quality when connecting from balanced to unbalanced equipment. Our method is tried and tested by professionals around the world, you will find these cables in use in high end DSLR camera rigs and PA setups.
To wire these we use a 4 core and screen cable, and wire the unused pin inside the XLR to the ground inside the jack. The screen is only connected to the jack. This method reduces interference, eliminates ground loops and improves the signal quality. Its very simple, and very effective! Should you require any other wiring to suit your requirements, please ask.
We have used the world renowned Van Damme Miniature Starquad cable that we have over-braided in a Vintage effect cloth. This is then terminated with industry standard Neutrik and Switchcraft connectors. These cables look and sound great. All terminations are made with a 3.5% silver solder.
- Van Damme Mini Starquad cable. with fabric vintage sheathing
- Neutrik NC3FXX XLR and Switchcraft 35HDNN 3.5mm Mini Jack connectors.
- Manufactured using audiophile grade 3.5% silver solder
The Truth behind Gold and Silver Connectors........
Silver is the better conductor however gold is highly resistant to corrosion so is favoured for its durability.
Delivery Speed | Made to Order - Next Day Delivery Available |
---|---|
Cable Capacitance | - |
Cable Resistance | - |
Cable Conductor | - |
Cable Screening | - |
Cable Jacket | Overall Diameter 5.2mm |
Overall Diameter | - |
Cable Brand | Van Damme |
Application | Studio Grade |
Contact Material | Silver Plated |
Multicore Core Count | 2 Way |
