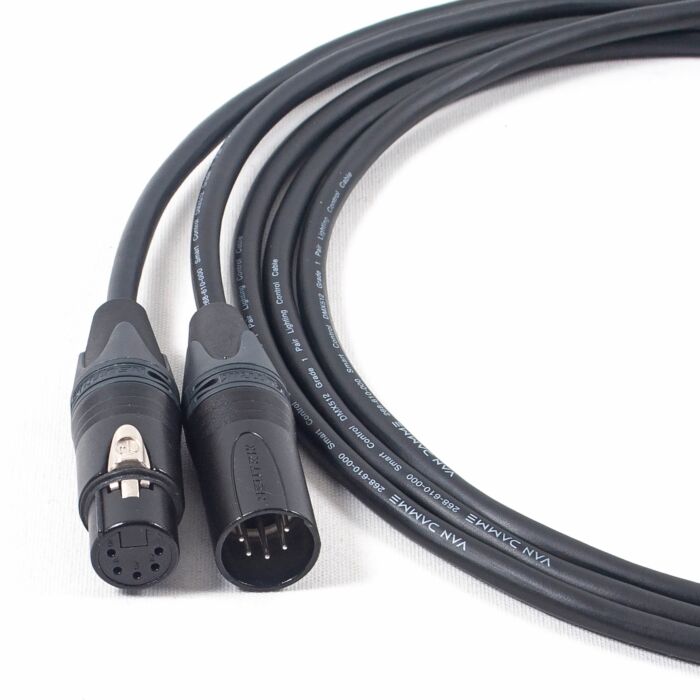

Van Damme Smart Control 5 Pin DMX & AES 110hm XLR Lead. Long Distance.
As low as
£26.86
In stock
SKU
5FX-BAG-VD.SMART.DMX.PRNT-5MX-BAG
Multibuy discounts calculated at checkout
Van Damme DMX512 Cables are robust, tour grade PVC jacketed precision foil screened cables for the transmission of the DMX512 lighting control protocol. 22 AWG conductors with foamed polyethylene insulation ensures accurate data transfer over longer distances.
Van Damme DMX512 Cables are robust, tour grade PVC jacketed precision foil screened cables for the transmission of the DMX512 lighting control protocol. 22 AWG conductors with foamed polyethylene insulation ensures accurate data transfer over longer distances.
This cable is slightly stiffer than the Tour-Grade variant, but the accurate 110ohm protocol ensures faithful transmission of digital signals up to 300m.
Terminated with industry standard 5 Pin XLRs from Neutrik. The 0.5mm conductors also allow you to carry DC power up to 3amps.
- Van Damme Smart Control DMX 1 Pair. Jet Black. 268-610-000
- 22AWG conductors for optimum data transfer at extended distances
- Flexible yet robust PVC jacket for reliable tactical use
- Neutrik NC5FXX-BAG and NC5MXX-BAG connectors
- Manufactured using 3.5% silver solder
| Delivery Speed | Made to Order - Next Day Delivery Available |
|---|---|
| Cable Capacitance | Core to screen 105 pF/m |
| Cable Resistance | Conductor <41 Ohm/Km / Impedance 110ohms @ 1 MHz |
| Cable Conductor | 16 x 0.20 mm tinned OFC / 0.52mm2 / AWG 20/16 |
| Cable Screening | Aluminium/Polyester Foil >125% coverage |
| Cable Jacket | Flexible PVC composite |
| Overall Diameter | 6.00 ± 0.30 mm |
| Cable Brand | Van Damme |
| Application | Tour & Studio Grade |
| Contact Material | Silver Plated |
| Number of Contacts | 5 Pole |
