Van Damme Single Link UltraHD 12G Video Coax Cable Reel. 4K UHDTV
As low as
£141.98
In stock
SKU
(DAC.21)VD.12G.UltraHD.PRNT
Multibuy discounts calculated at checkout
Van Damme Enhanced Performance HD Vision coaxial cable is based around the industry standard RG6/U, at 7mm overall diameter this is a heavy-duty cable. It has a silver-plated solid centre conductor so stiffer than stranded versions but offers high performance over longer lengths.
Van Damme Enhanced Performance HD Vision coaxial cable is based around the industry standard RG6/U, at 7mm overall diameter this is a heavy-duty cable. It has a silver-plated solid centre conductor so stiffer than stranded versions but offers high performance over longer lengths.
Precision construction ensures trouble free performance with 4K Single-link 12 Gb/s UHDTV, SMPTE 424M and 292M HD-SDI signals as well as being backwards compatible with HDTV, 3G-SDI, HD-SDI, SDI and analogue video. Distances vary so please check out our guide below.
We have used the latest Neutrik UHD BNCs on these cables to ensure high-quality, error free signal transfer.

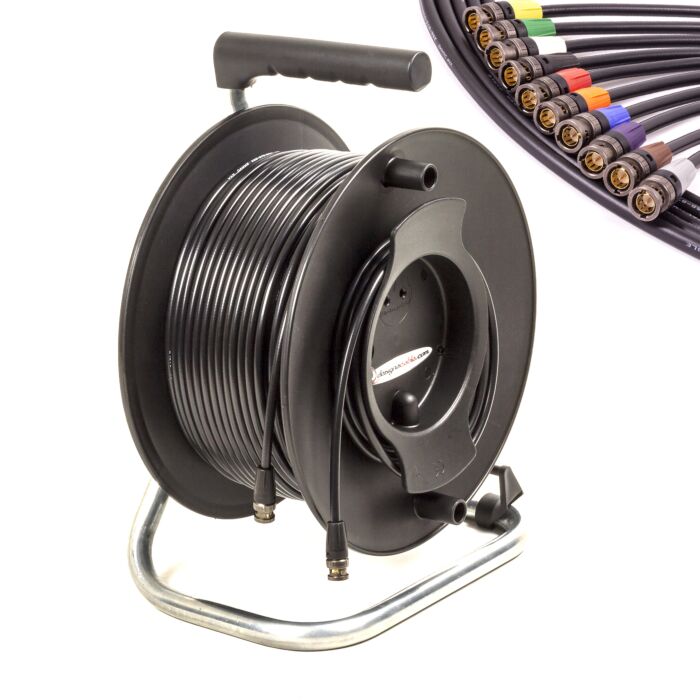

The cable is mounted on an HDP, Steel Frame drum. The drum has a flange on the side with 2m of cable wound around it. There are no breaks or joins in this cable, it is one complete length.
- Equivalent to Belden 4694R
- RG6/U. 7mm Overall Diameter
- Transmission of 4K Single-link, 12 Gb/s UHDTV, 4K UHD, HDTV, 3G-SDI, HD-SDI, SDI and analogue video signals
- 720p, 1080i, 1080p, 1080p120, 2160p30 compatible
- Solid centre conductor for High-Performance
- Designed for Cinema rooms, touring and outside broadcast
- Neutrik Rear Twist ‘Ultra High Definition’ BNCs (coloured boots available)
- Crimped with the official Neutrik BNC crimping tool
*Check out our ‘Length v’s Performance Guide’
Figures shown generally involve a 20% tolerance (de-rating) due to the many factors that can influence performance. Care should always be taken with Coaxial cables when installing and using dynamically to not twist, over-bend or crush them as this will have a significant impact on performance
| Delivery Speed | Made to Order - Next Day Delivery Available |
|---|---|
| Cable Capacitance | 52 pF/m |
| Cable Resistance | 21 Ohm/km |
| Cable Conductor | Silver plated oxygen free copper - Size 0.79 mm2, AWG 18 |
| Cable Screening | Aluminium/polyester foil (bonded) / Tinned oxygen free copper braid |
| Cable Jacket | Flexible PVC composite Jet Black RAL 9005 |
| Overall Diameter | 6.95mm |
| Cable Brand | Van Damme |
| Application | Tour & Studio Grade |
| Number of Contacts | 2 Pole |
