Van Damme Plasma Grade Mini Coax - 268-408-000
As low as
£0.24
In stock
SKU
VD.COAX.MINI.PLASMA.BK.PRNT
Multibuy discounts calculated at checkout

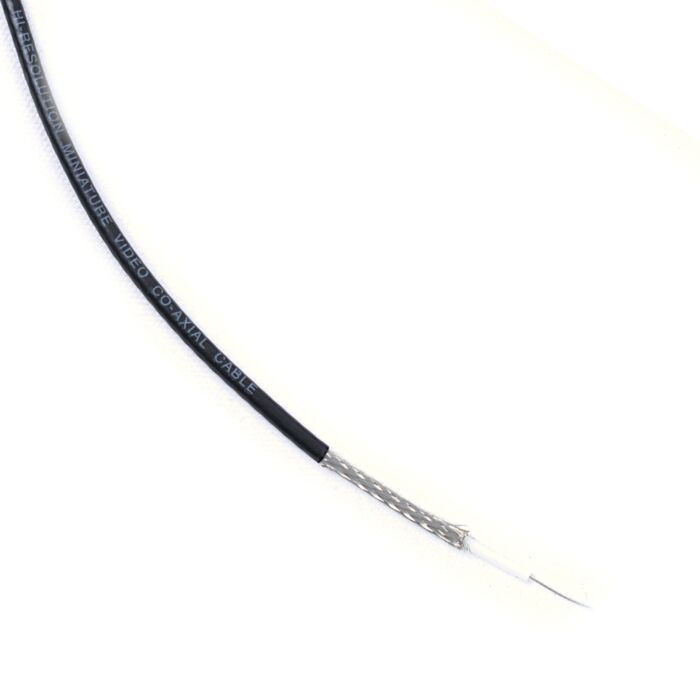

Van Damme Miniature 75 Ohm Plasma Grade Video Coaxial Cable has been designed to provide the best possible performance from a low overall diameter stranded video cable. The range is mechanically equivalent to RG179 and available in the 6 colours commonly associated with video signals.
Van Damme Miniature 75 Ohm Plasma Grade Video Coaxial Cable has been designed to provide the best possible performance from a low overall diameter stranded video cable. The range is mechanically equivalent to RG179 and available in the 6 colours commonly associated with video signals.
Van Damme Miniature 75 Ohm Plasma Grade Video Coaxial Cable has been designed to provide the best possible performance from a low overall diameter stranded video cable. The range is mechanically equivalent to RG179 and available in the 6 colours commonly associated with video signals.
Applications
- Analogue video transmission up to 30 metres
- Internal rack and patch panel wiring
- Multipin connector breakouts
Application Notes
- Uses RG179 type crimp connectors
- Colour coding suitable for RGBHV, RGBS, YUV and other video formats
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Type | Guitar & HiFi Interconnect |
| Data Sheet URL | Download Data Sheet |
| Cable Brand | Van Damme |
| Cable Conductor | 7 x 0.12 mm bare ultra-pure oxygen-free copper |
| Cable Resistance | 235 Ohm/km |
| Cable Capacitance | 56.5 pF/m |
| Overall Diameter | 2.60 ± 0.15 mm |
| Cable Jacket | Flexible PVC |
