Van Damme Extended HD Vision Coax RG6/U. SOLID. HD-SDI & SDI analogue video. 268-875-000
As low as
£0.54
In stock
SKU
CABLE.DIGI.VDCO.HD.RG6.SOLID.PRNT
Multibuy discounts calculated at checkout

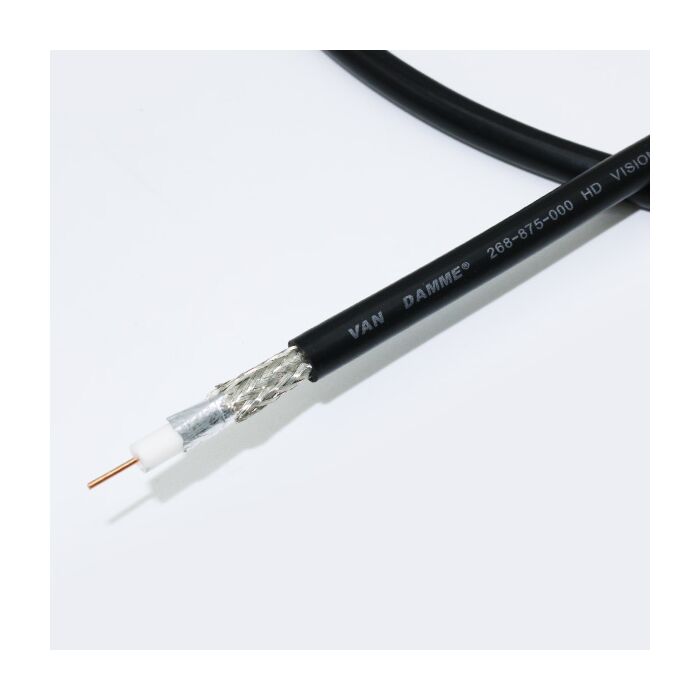

The Van Damme Enhanced Performance HD Vision coaxial is based around the industry standard RG6/U.
The Van Damme Enhanced Performance HD Vision coaxial is based around the industry standard RG6/U. Its precision construction ensures that electrical performance is optimised, ensuring trouble free performance with SMPTE 424M and 292M HD-SDI signals as well as SDI and analogue video. It can also be used for shorter UHD runs when used with an appropriate 12G HD BNC connector.
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Type | Coaxial - 50ohm, 75ohm, SDI |
| Data Sheet URL | Download Data Sheet |
| Cable Brand | Van Damme |
| Multicore Core Count | 2 Way |
| Cable Conductor | Bare oxygen free copper |
| Cable Resistance | 25.3 |
| Cable Capacitance | 53 |
| Overall Diameter | 6.95 mm |
| Cable Jacket | Flexible PVC composite Jet Black RAL 9005 |
