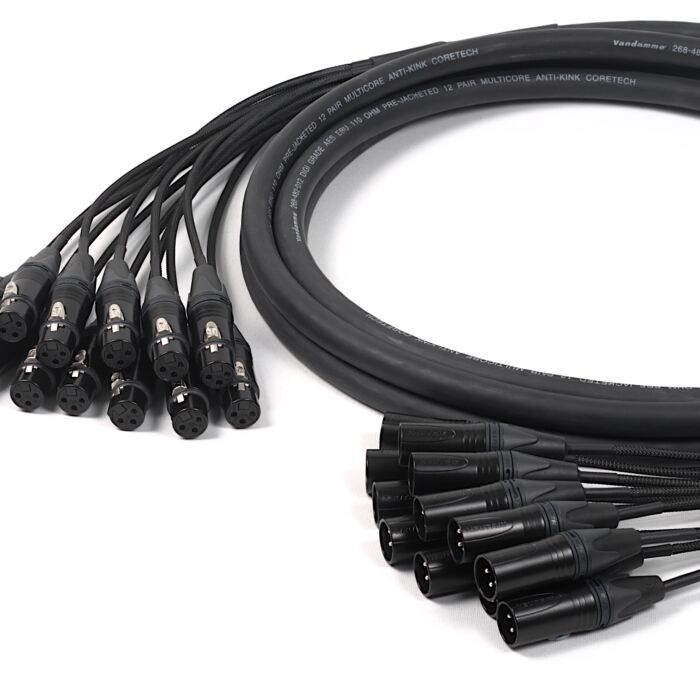

Van Damme Digitour Black Series Multicore Loom Stage Snake. Balanced Female XLR Male XLR
As low as
£34.62
In stock
SKU
3FXBAG-DIGI.BK.PRNT-3MXBAG
Multibuy discounts calculated at checkout
High quality multicore snakes made using Van Damme Digi-Tour Series Multicore cable and Neutrik Black shells and silver pins connectors. Each tail is braided with an expandable polyester sleeve and is held in place with a thick glue lined adhesive heat-shrink. Each individual core is numbered or marked with a coloured boot for easy identification. All cables are made to order so can be customised to suit your needs.
High quality multicore snakes made using Van Damme Digi-Tour Series Multicore cable and Neutrik Black shells and silver pins connectors. Each tail is braided with an expandable polyester sleeve and is held in place with a thick glue lined adhesive heat-shrink. Each individual core is numbered or marked with a coloured boot for easy identification. All cables are made to order so can be customised to suit your needs.
Van Damme Digi-Tour multicores are mechanically and electrically based on the established Van Damme Green Series range. The characteristic impedance of 110 Ohms makes them ideal for both AES/EBU digital audio and DMX512 lighting control signals as well as analogue audio transfer. With a matt black outer jacket ideal for on stage use and discreet rigging.
Application Notes
- Suitable for analogue balanced audio and AES/EBU as well as DMX512
- Available in 2, 4, 8, 12 and 16 way multicores
- 26AWG conductors for reduced overall diameter; each single cable has 24AWG conductors
- Ultra-pure oxygen free copper for outstanding sonic integrity
Standard Tail lengths
2 Way – 20cm
4 Way – 20cm
8 Way – 30cm
12 Way – 30cm
16 Way – 50cm
24 Way – 75cm
32 Way – 1m
48 Way – 1m
If you require custom tail lengths, please email [email protected] before making your purchase.
| Delivery Speed | Made to Order - 4 Days MAX on delivery |
|---|---|
| Cable Capacitance | Core to screen100pF/m |
| Cable Resistance | Conductor<144Ohm/km |
| Cable Conductor | 7 x 0.16mm bareultra-pure oxygen-free copper. 0.14mm2, AWG 26/7 |
| Cable Screening | 24 μm Aluminium/Polyester Foil>150% coverage |
| Cable Jacket | Flexible PVC Composite. Jet Black, RAL 9005 |
| Cable Brand | Van Damme |
| Application | Tour & Studio Grade |
| Contact Material | Nickel Plated |
