Van Damme 1080i HD-SDI 1.5G Flexible Video Coax Cable Reel. Neutrik BNC

Van Damme HD Vision coaxial cable is based around the industry standard RG59/U. It is 6mm overall diameter making it lightweight and has a stranded centre conductor so offers excellent flexibility. Precision construction ensures trouble free performance of HDTV, 3G-SDI, HD-SDI signals (SMPTE 424M and SMPTE 292M), as well as being backwards compatible with SDI and analogue video. Distances vary so please check out our guide below.

We have used the latest Neutrik UHD BNCs on these cables to ensure high-quality, error free signal transfer.

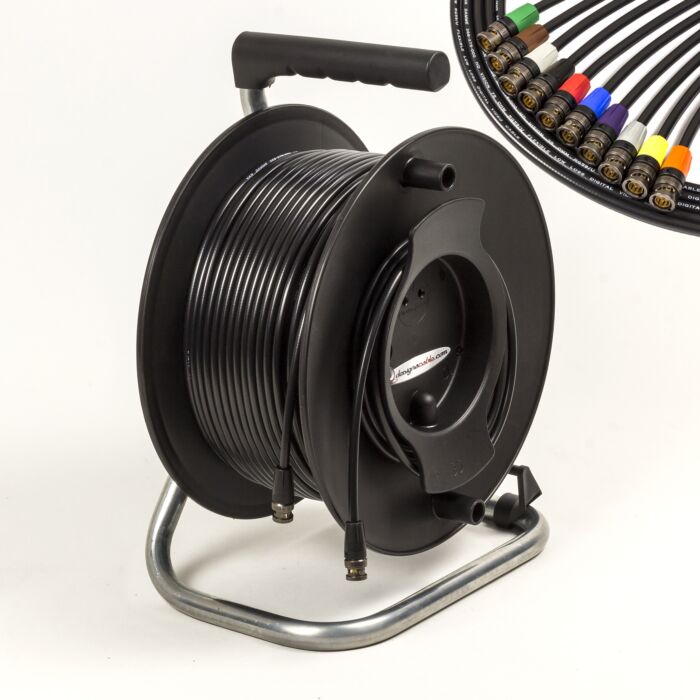

The cable is mounted on a HDP, Steel Frame drum. The drum has a flange on the side with 2m of cable wound around it. There are no breaks or joins in this cable, it is one complete length.

• RG59/U. 6.15mm Overall Diameter
• Transmission of HDTV, 3G-SDI, HD-SDI, SDI and analogue video signals
• 720p, 1080i, 1080p compatible
• Stranded centre conductor for flexibility
• Designed for touring, outside broadcast, CCTV and other dynamic uses
• Neutrik Rear Twist ‘Ultra High Definition’ BNCs (coloured boots available)
• Crimped with the official Neutrik BNC crimping tool

*Check out our ‘Length v’s Performance Guide’

Figures shown generally involve a 20% tolerance (de-rating) due to the many factors that can influence performance. Care should always be taken with Coaxial cables when installing and using dynamically to not twist, bend or crush them as this will have a significant impact on performance
