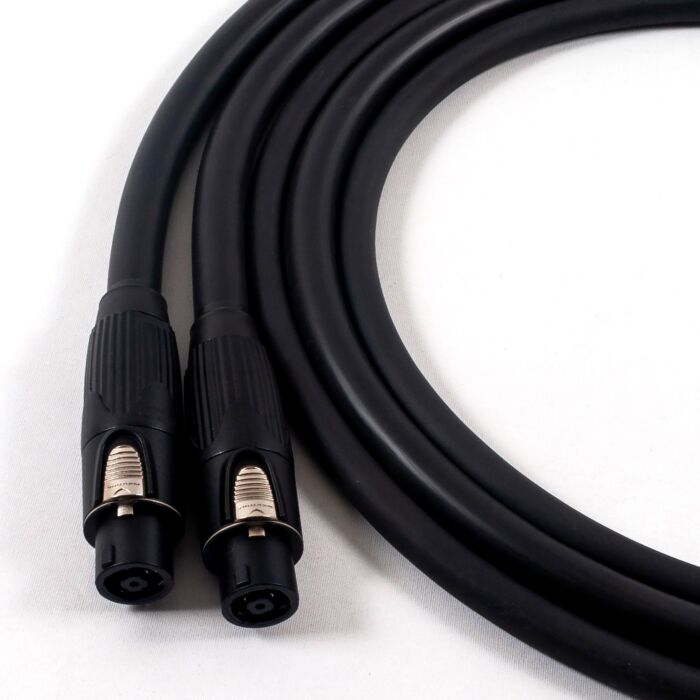

Tour Grade (8 Pole) NL8 Metal Speakon Lead Van Damme Black Series Speaker Cable
Multibuy discounts calculated at checkout
Tough touring speaker leads made with Van Damme's Black Series speaker cable and STX metal speakons. Custom lengths available. These are industry standard leads used widely by top event teams and concert halls around the world.
Tough touring speaker leads made with Van Damme's Black Series speaker cable and STX metal speakons. Custom lengths available. These are industry standard leads used widely by top event teams and concert halls around the world.
Van Damme Black Series cable has a tough and flexible PVC composite outer jacket, the operating temperature is; -20 to +70 ⁰C. The conductors are 'Bare Ultra-Pure Oxygen Free Copper'. Van Damme speaker cables are renowned for reliability, you will find them in music venues all around the world, and on Tour with the worlds biggest bands.
Choosing the Conductor Size....
Conductor Size |
Recommended Wattage |
1.5mm | 0 - 200 watts |
2.5mm | 200 - 600 watts |
4mm | 600 - 2000 watts |
6mm | 2000 watts + |
….By increasing the conductor size, you decrease resistance. Your speaker will have a 'Wattage' rating, it is usually marked on the enclosure, use our guide above to match your Wattage to the appropriate size conductor.
Van Damme Black Series Cable Properties |
|||
Conductor Size | Overall Diameter | Conductor Stranding | Conductor Resistance |
2.5mm |
15.80mm |
50 x 0.25mm | 7.65 Ohm/Km |
4mm |
17.70mm |
127 x 0.2mm | 4.60 Ohm/Km |
- Neutrik NLT8FX-BAG 8 pole Metal Speakon connectors.
- The connectors are soldered onto the cable with a 3.5% silver solder.
Delivery Speed | Made to Order - Next Day Delivery Available |
---|---|
Cable Capacitance | - |
Cable Resistance | 4.60 Ohm/Km |
Cable Conductor | 8 x 4mm multicore / Stranding - 127 x 0.20mm |
Cable Screening | - |
Cable Jacket | Overall diameter - 17.70mm / Weight – 500g p/m |
Overall Diameter | - |
Cable Brand | Van Damme |
Application | Tour & Studio Grade |
Contact Material | Silver Plated |
Number of Contacts | 8 Pole |
