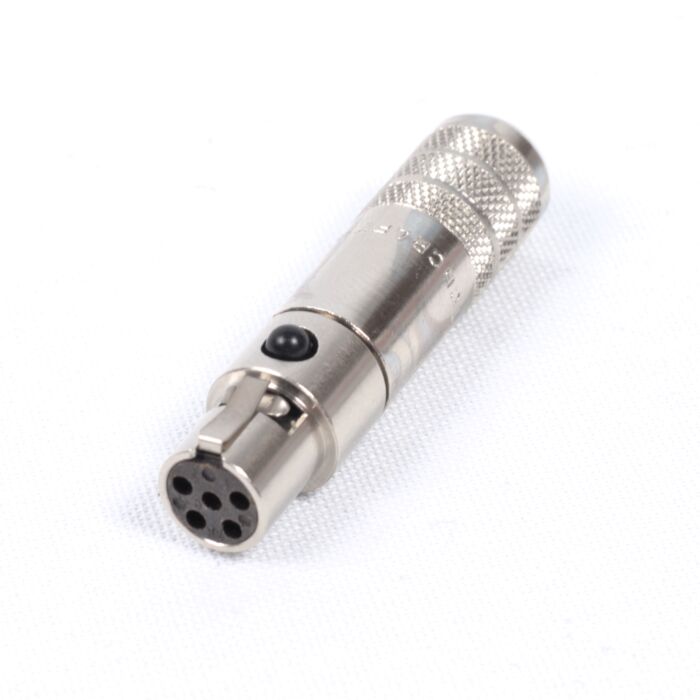

Switchcraft Tini Q-G® 5 Pin TA5FSH Female Mini XLR Connector. Steel Body
Multibuy discounts calculated at checkout
- Buy 5 for £26.33 each and save 5%
- Buy 10 for £24.95 each and save 10%
- Buy 15 for £23.56 each and save 15%
- Buy 20 for £22.18 each and save 20%
Steel sheel with paper insert allows for the use of larger cables. These are seriously robust 5 pole mini XLR connectors with excellent ‘crimp type’ cable strain relief. The latching system is very precise so makes for a rock solid connection. American engineering at its best.
Steel sheel with paper insert allows for the use of larger cables. These are seriously robust 5 pole mini XLR connectors with excellent ‘crimp type’ cable strain relief. The latching system is very precise so makes for a rock solid connection. American engineering at its best.
Switchcraft TA5FSH
Tini-QG "Mini XLR" 5 Pin Female Cable Mount, Silver Pins, Nickel Shell
Steel sheel with paper insert allows for the use of larger cables. These are seriously robust 5 pole mini XLR connectors with excellent ‘crimp type’ cable strain relief. The latching system is very precise so makes for a rock solid connection. American engineering at its best.
MATERIAL
- Housing: Copper alloy, nickel-plated.
- Pin and Socket Contacts: Copper Alloy, gold or silver-plated.
- Flex Relief (optional): Stainless Steel
- Latch Button: Thermoplastic.
- Inserts and Insulating Spacer: Thermoplastic (UL-94V-0)
- Latch (Female): Copper alloy, nickel-plated.
- Cable Clamp/ Ground Terminal: Steel, electro-tin plated
- Handle: Copper Alloy, nickel plated
- Tubular Insulator: Fish Paper
ENVIRONMENTAL
- Thermal Range: -55°C to + 85°C.
- Humidity: Meets MIL-STD-202, method 106D.
- Thermal Shock: Meets MIL-STD-202, method 107D.
- Salt Spray: Meets MlL-STD-202, method 101.
ELECTRICAL
- Contact Resistance: .010 ohms maximum after life (and after salt spray).
- Current Rating (Carry Only): 5 A, 125 V AC (4 A, 125 V AC on 5 circuit) based on 30°C maximum.
- Insulation Resistance: 510,000 megohms minimum @ 500 VDC (initial); 10,000 megohms minimum (after humidity test).
- Dielectric Strength: 1,000 V (rms).
MECHANICAL
- Life: 5,000 operations minimum
- Insertion/Withdrawal Forces (after life): 6.1 lb./2.77 kg after life, insertion; 5.6 lb/2.54 kg, withdrawal.
- Solderability Standard: Meets EIA RS-186-9E.
- Mechanical Shock: Meets MIL-STD-202, method 213B.
- Vibration: Meets MIL-STD-202, method 201A.
- Wire Size: #22 wire gauge solid; #24 wire gauge stranded.
Delivery Speed | Next Day delivery available if 'In Stock' |
---|---|
Mounting Method | Cable Mount - Solder |
Contact Material | Silver Plated |
Number of Contacts | 5 Pole |
Pack Quantity | Pack of 1 |
