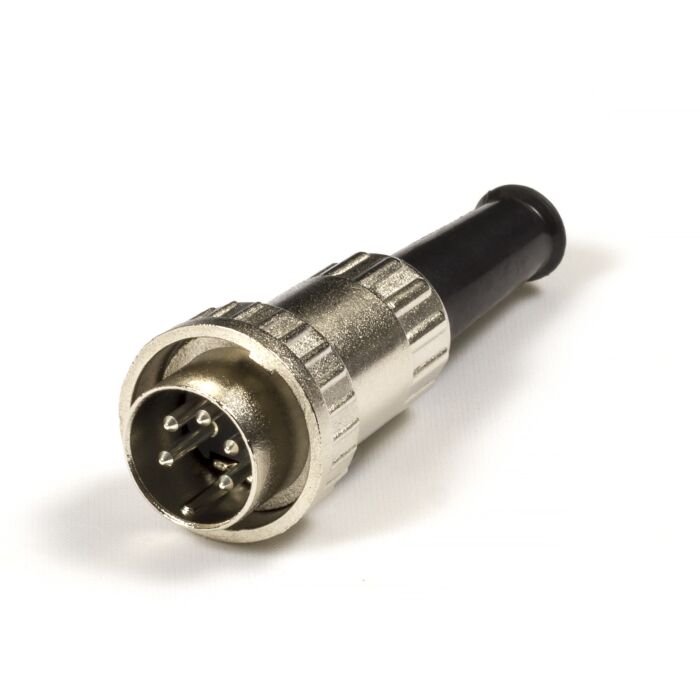

Switchcraft Locking 240 degree 5 Pin Din. 12CL5MX. NAIM Audio Connector
£13.86
In stock
We have 23 items in stock!
SKU
DIN_12CL5MX(240.Locking)
Multibuy discounts calculated at checkout
- Buy 5 for £13.17 each and save 5%
- Buy 10 for £12.47 each and save 10%
- Buy 15 for £11.78 each and save 15%
- Buy 20 for £11.09 each and save 20%
High quality 240-degree 5 pin din plug, suitable for NAIM and QUAD products that require this specific pin arrangement.
High quality 240-degree 5 pin din plug, suitable for NAIM and QUAD products that require this specific pin arrangement.
Male plug with ground key-rib. Unique 30° turn lockring securely fastens two halves of connector. Mates with lock flange female connectors and receptacles. Insert screw holds insert assembly in shell and retains lockring on shell. Flexible black strain relief with 7/32" diameter cable entry. Heavy duty clamp.
Technical Info
- Dielectric Withstanding Voltage: 500 V (rms)
- Contact Rating: 5-pin; 3A, 34 V DC
- Leakage Resistance: 105M (ohm)
- Recommended Wire Size: 22 wire gauge maximum
- Shell: Die-cast zinc alloy, nickel-plated
- Receptacle Mounting Flange: Steel
- Receptacle Body: Plastic
- Insert Material: Plastic
- Socket Contacts: Tin-plated
- Pin Contacts: Tin-plated
- Switching Contacts: Silver-plated
- Cable Relief Bushing: Soft plastic
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Solder |
| Contact Material | Silver Plated |
| Number of Contacts | 5 Pole |
| Pack Quantity | Pack of 1 |
