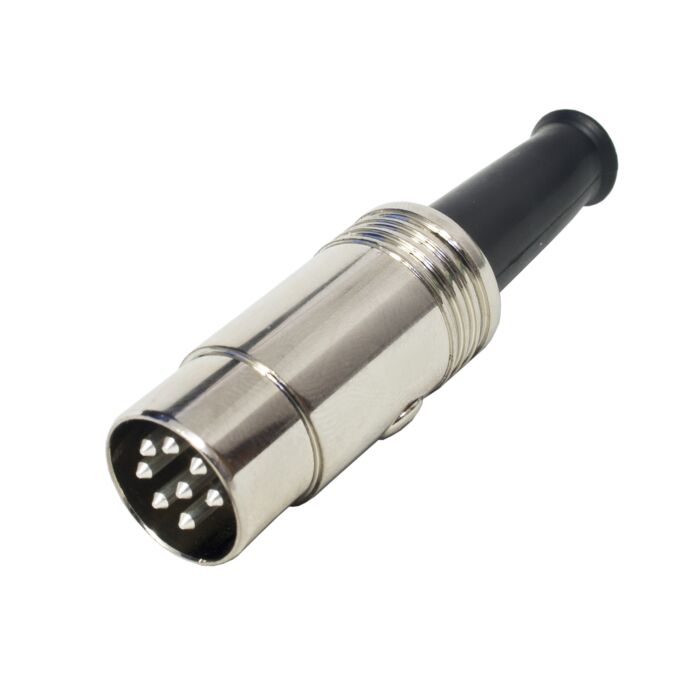

Switchcraft 8 Pin Straight Din Plug 270 Degree. 15BL8M
£10.53
In stock
We have 53 items in stock!
SKU
DIN_15BL8M(8pin)
Multibuy discounts calculated at checkout
- Buy 5 for £10.00 each and save 5%
- Buy 10 for £9.48 each and save 10%
- Buy 15 for £8.95 each and save 15%
- Buy 20 for £8.42 each and save 20%
DIN Cable Mount Connector, male cord plug with shielded barrel, 8 pins at 270°, Gray body and strain relief.
DIN Cable Mount Connector, male cord plug with shielded barrel, 8 pins at 270°, Gray body and strain relief.
DIN Cable Mount Connector, male cord plug with shielded barrel, 8 pins at 270°, Gray body and strain relief.
Hi-quality metal male cord plug with shielded barrel. Two piece metal barrel surrounds pin insert to form an electrical shield. The entire insert assembly is held together by snapping the insulated plastic shell over the assembly. The barrel's special metal tab locks the shell in place. All-purpose cable clamp.
This connector boasts a slim line and precise design. The long pin fingers ensure a solid connection.
Electrical Info
- Contact Resistance: Cord Plugs and Receptacles; .010 ohms, contact spring/pin .030 ohms, ground clip/shell. Control and Switching Receptacles; .015 ohms, contact spring/pin; .020 ohms, switch contacts.
- Dielectric Withstanding Voltage: 500 V (rms)
- Contact Rating: 5-pin; 3A, 34 V DC
- Leakage Resistance: 105M (ohm)
- Recommended Wire Size: 22 wire gauge maximum
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Solder |
| Contact Material | Silver Plated |
| Number of Contacts | 8 Pole |
| Pack Quantity | Pack of 1 |
