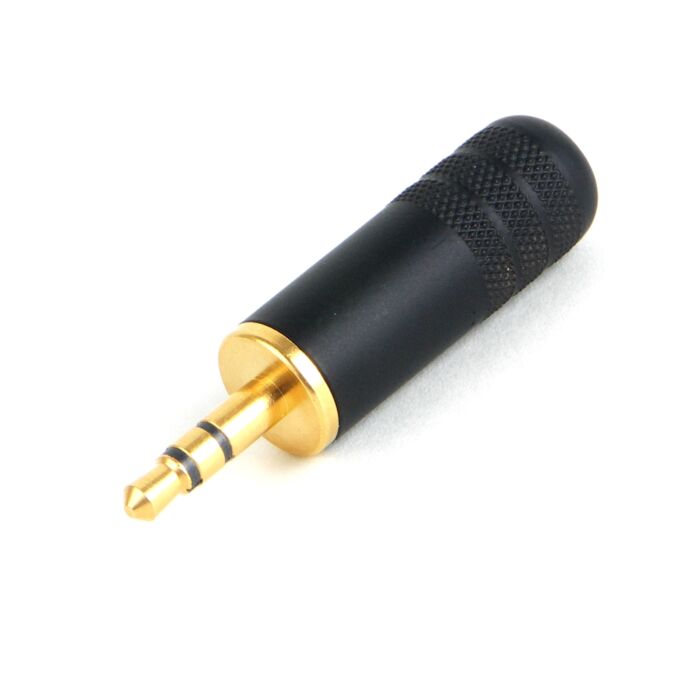

3.5mm Switchcraft Gold 35HDBAU Mini Jack Connector
£11.80
In stock
We have 16 items in stock!
SKU
MINI.JACK_35HDBAU
Multibuy discounts calculated at checkout
- Buy 5 for £11.21 each and save 5%
- Buy 10 for £10.62 each and save 10%
- Buy 15 for £10.03 each and save 15%
- Buy 20 for £9.44 each and save 20%
Tough Mini jacks from Switchcraft, PLUS an extra large cable entry so that you can use heavier gauge cables
Tough Mini jacks from Switchcraft, PLUS an extra large cable entry so that you can use heavier gauge cables
35HD Series Plugs
Sturdy construction 3.5mm plugs with insert molded plug finger. Longer cable clamp and larger solder terminals for easier plug assembly and more room for solder connections. Longer handle for improved gripping surface and easy plug withdrawl from jack.
Specifications
- Contact Resistance:<0.020 ohms
- Dielectric Withstand Voltage: 250 VAC (min.)
- Insulation Resistance @ 500 VDC: 2,000 megohms (min.)
- Working Voltage: 250 VAC, 140 VDC
- Current Carry @ Working Voltage: 4 AMPS
- Insert/Withdrawal Force: Typical 2.5/2 pounds
- Temperature Range: 0° to 66° Centigrade (operating) Passed MIL-STD-202F Method 107G (Thermal Shock), and Method 201 (Vibration)
- Life: 5000 cycles
- Maximum Cable Size: .250" dia.
Materials
- Tip Rod: Copper alloy, tin, or gold-plated
- Ring: Copper alloy, nickel, or gold-plated
- Sleeve: Copper alloy, nickel, or gold-plated
- Handle: Copper alloy, nickel, or gold-plated
- Cable Clamp: C.R.S., tin-plated
- Solder Terminal: Copper alloy, tin-plated
- Tubular Insulator: Clear plastic
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Solder |
| Contact Material | Gold Plated |
| Number of Contacts | 3 Pole |
| Pack Quantity | Pack of 1 |
