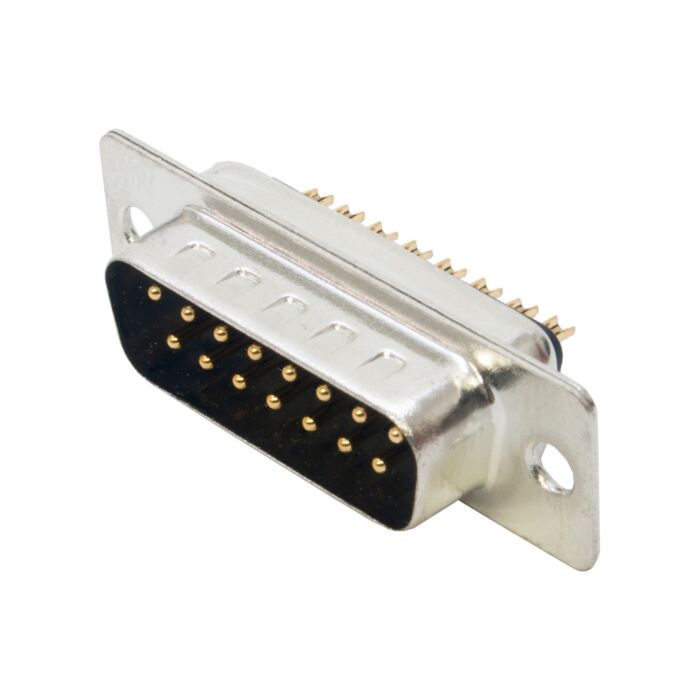

Standard Density. Machined 15 Pin D SUB Connector. High Quality Male Solder Type Pins
£2.07
In stock
We have 19 items in stock!
SKU
SERIAL_15D.MACH.MALE
Multibuy discounts calculated at checkout
- Buy 5 for £1.97 each and save 5%
- Buy 10 for £1.86 each and save 10%
- Buy 15 for £1.76 each and save 15%
- Buy 20 for £1.66 each and save 20%
Solder Sub D Connectors manufactured using high quality Machined Contacts. Product is available in both male and female variations
Solder Sub D Connectors manufactured using high quality Machined Contacts. Product is available in both male and female variations
Technical Spec
- Insulator: Glass filled Polyester, Black. UL94 V-0
- Shell: Stamped Steel, Tin Plated
- Contact pins: Copper Alloy
- Machined Pins: Class 1, 500 inserts min. (DM)
- Contact Plating: Selective Gold over Nickel
- Contact current rating: 5 Amps max
- Contact resistance: 25mΩ max
- Operating temperature: -56°C to +105°C
- Withstanding voltage: 1000V AC for 1 minute
- Insulator resistance: 1000MΩ min
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Solder |
| Contact Material | Gold Plated |
| Number of Contacts | 15 Pole |
| Pack Quantity | Pack of 1 |
