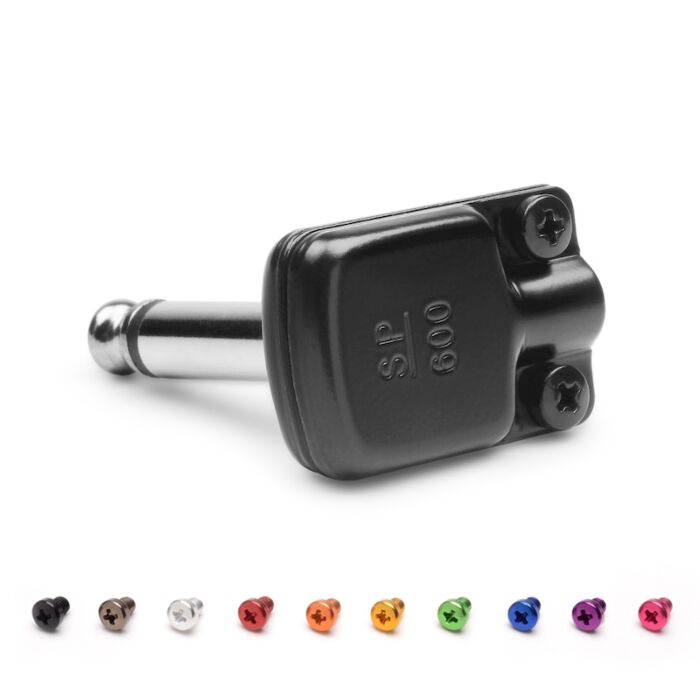

SquarePlug SP600BK Low Profile Mono (TS) Right Angled 6.35mm Jack. BLACK

SquarePlug SP600BK, designed and manufactured by kmmk solutions, is the smallest 1/4" soldered connector on the market. It is 20% smaller than the Switchcraft 228 and projects by only 8.3mm which is much less than any currently available soldered and solder-less connectors.

What makes SP600BK stands out though, is its ability [thanks to a super compact design] to be patched into adjacent and closely spaced socket configurations [like the ones found on floor and rack based switching systems] where no other right angled soldered plug can.

With SquarePlug you get the performance and reliability of a soldered connector with virtually the same footprint of a solderless one!

• Ultra low profile connector for highest packing density
• Serviceable, allmetal plug designed to snugfit cables (6 to 6.5mm) for optimum strain relief and improved emi protection
• 2 solder tabs for quick and easy soldering/desoldering
• Insulation sheet to prevent hot and ground signals from shorting
• Right Angle TS (mono) Connector
• Dimensions: 8.3mm / 0.326" x 17mm / 0.67" x 28mm / 1.10"
• All metal construction (matte black plating finish)
• Proprietary colour coding system.

**Coloured Screws Available HERE
