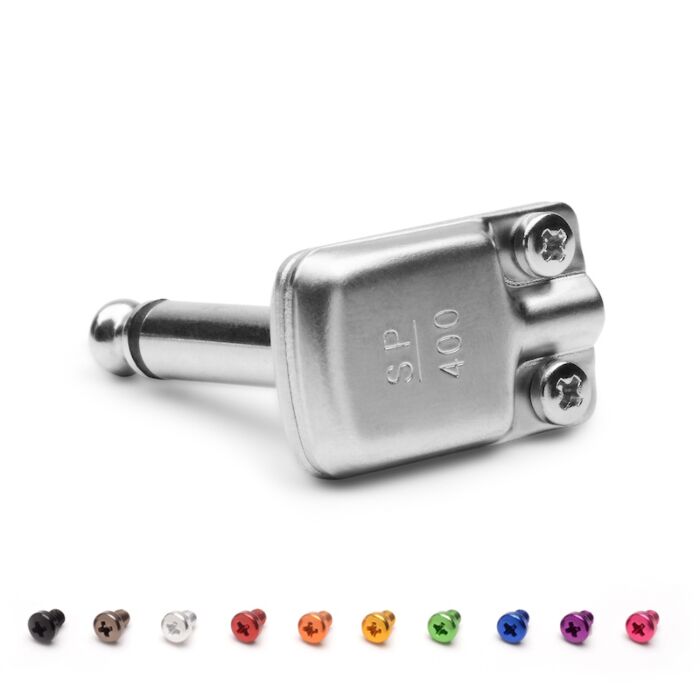

SquarePlug SP400 Worlds Smallest Angled Quarter Mono Jack Pancake Plug Connector
Multibuy discounts calculated at checkout
- Buy 5 for £5.05 each and save 5%
- Buy 10 for £4.79 each and save 10%
- Buy 15 for £4.52 each and save 15%
- Buy 20 for £4.26 each and save 20%
This is the smallest 1/4" soldered connector on the market. It is 20% smaller than the Switchcraft 228 and projects by only 8.3mm
This is the smallest 1/4" soldered connector on the market. It is 20% smaller than the Switchcraft 228 and projects by only 8.3mm
SquarePlug SP400/500, designed and manufactured by kmmk solutions, is the smallest 1/4" soldered connector on the market. It is 20% smaller than the Switchcraft 228 and projects by only 8.3mm which is much less than any currently available soldered and solder-less connectors.
What makes SP400 stands out though, is its ability [thanks to a super compact design] to be patched into adjacent and closely spaced socket configurations [like the ones found on floor and rack based switching systems] where no other right angled soldered plug can.
With SquarePlug you get the performance and reliability of a soldered connector with virtually the same footprint of a solderless one!
- Ultra low profile connector for highest packing density
- 2 solder tabs for quick and easy soldering/desoldering
- Insulation sheet to prevent hot and ground signals from shorting
- Right Angle TS (mono) Connector
- Dimensions: 8.3mm / 0.326" x 17mm / 0.67" x 28mm / 1.10"
- All metal construction (matte nickel plating finish)
- Designed to snug fit cables between 4 and 4.5mm in dia. (SP400)
- Proprietary colour coding system
Delivery Speed | Next Day delivery available if 'In Stock' |
---|---|
Mounting Method | Cable Mount - Solder |
Series Range Name | Pancake Jacks |
Contact Material | Silver Plated |
Number of Contacts | 2 Pole |
Pack Quantity | Pack of 1 |
