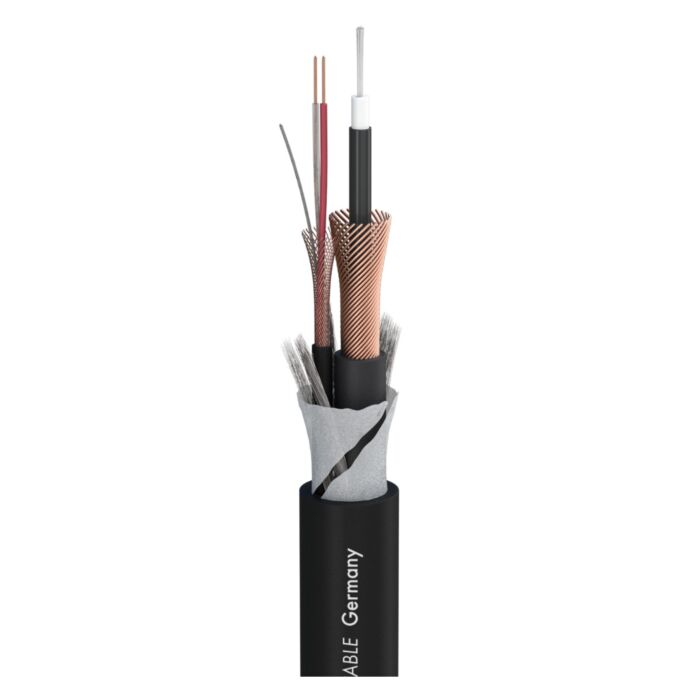

Sommer Tricone Symasym Combo Cable. Instrument & IEM Balanced Multicore
Multibuy discounts calculated at checkout
Balanced or unbalanced... that is the question – or rather it isn’t, for with our TRICONE SYMASYM you’ve got both! Notably our axe players wanted to have a cable for the trendy piezo/electric guitars which could perfectly transmit the embosomed full crunch and also the true acoustic sound. This opens up new sound options within a song. And since we are passionate musicians ourselves, we immediately buckled down to develop a cable with a round PVC jacket (IEC 60332-1) combining the proven TRICONE ® and the compact, balanced CICADA.
By the way, this cable can also carry the instrument signal and the IN-EAR monitoring signal in one line. We see no limits for other application possibilities.
Balanced or unbalanced... that is the question – or rather it isn’t, for with our TRICONE SYMASYM you’ve got both! Notably our axe players wanted to have a cable for the trendy piezo/electric guitars which could perfectly transmit the embosomed full crunch and also the true acoustic sound. This opens up new sound options within a song. And since we are passionate musicians ourselves, we immediately buckled down to develop a cable with a round PVC jacket (IEC 60332-1) combining the proven TRICONE ® and the compact, balanced CICADA.
By the way, this cable can also carry the instrument signal and the IN-EAR monitoring signal in one line. We see no limits for other application possibilities.
TRICONE SYMASYM
Instrument Cable
Advantages:
- Unbalanced instrument line plus balanced audio line in one cable
- Flexible round jacket for tough use on stage
- Easy handling owing to 2-in-1 concept
Application:
- Instrument + In-ear system over one cable
- Guitars with electric/piezo multi-pickup system (standard magnetic pickups + bridge piezo)
Technical Data:
- Article number: 301-1101
- Name: TRICONE SYMASYM
- EAN: 4049371257855
- Brand: Sommer cable
- Properties: OFC oxygen free copper
- Properties: Analog
- Application area: Installation
- Application area: Stage / live
- Application area: Mobile outdoor / indoor
- Application: Instrument Cable
- Colour: black
- Construction: 1 x 0,22mm² + 1 x (2x0,14mm²)
- Construction (audio): 2x0,14mm²
- Construction (instrument): 1 x 0,22mm²
- Jacket material: PVC
- Jacket material (audio): PMB
- Jacket Ø: 11,30 mm
- Jacket Ø: 0.4449 "
- Jacket Ø (audio): 2,60 mm
- Jacket Ø (audio): 0.1024 "
- Jacket Ø (instrument): 4,60 mm
- Jacket Ø (instrument): 0.1811 "
- Number of Channels (audio): 1
- Number of Channels (instrument): 1
- Inner conductor (audio): 2
- Inner conductor: 1
- Inner conductor (audio): 0,14 mm²
- Inner conductor (audio): 0.0002 sqin
- Inner conductor: 0.0003 sqin
- Inner conductor: 0,22 mm²
- AWG (audio): 25
- AWG (instrument): 23
- Shielding (audio): Copper spiral + filler strand
- Shielding (instrument): Cu mesh screen + semiconductor
- Shielding factor: 100 %
- Copper strands (audio): 18
- Copper strands (instrument): 28
- Copper strand Ø (audio): 0,10 mm
- Copper strand Ø (audio): 0.0039 "
- Copper strand Ø (instrument): 0,1 mm
- Copper strand Ø (instrument): 0.0039 "
- Weight per 1 m: 133,33 g
- Weight at 1000 ft.: 89.7199 lbs
- UV-resistant: yes
- Fire load per m: 0,55 kWh
- Style variant: round
- Packing: bulk stock
- Temperature min.: -25 °C
- Temperature max.: 70 °C
- Width: 11,3 mm
- Width: 0.4449 "
- Height: 11,3 mm
- Height: 0.4449 "
- Capac. cond./cond. per 1 m (audio): 68 pF
- Capacity wire/wire at 1 ft. (audio): 20.7264 pF
- Capac. cond./shield. per 1 m (audio): 120 pF
- Capacity wire/electic screen at 1 ft. (audio): 36.576 pF
- Capacity wire/electic screen at 1m (instrument): 85 pF
- Capacity wire/electic screen at 1 ft. (instrument): 25.908 pF
- Insulation resist. per 1 km: 1 GΩ
- Insulation resist. per 1000 feet: 0.3048 GΩ
- Insulation resist. per 1 km (audio): 1 GΩ
- Insulation resist. per 1000 feet (audio): 0.3048 GΩ
- Insulation resist. per 1km (instrument): 1 GΩ
- Insulation resist. per 1000 feet (instrument): 0.3048 GΩ
- Conductor resistance per 1 km (audio): 136 Ω
- Conductor resistance per 1000 ft. (audio): 41.4528 Ω
- Conductor resistance per 1 km (instrument): 91 Ω
- Conductor resistance per 1000 ft. (instrument): 27.7368 Ω
- Shield. resistance per 1 km: 30 Ω
- Shield. resistance per 1000 ft.: 9.144 Ω
- Old article number: 301-1100
- BPVo-Euroclass: Fca
Delivery Speed | Next Day delivery available if 'In Stock' |
---|---|
Cable Type | Hybrid Signal & Power |
Cable Brand | Sommer |
Multicore Core Count | 2 Way |
Cable Conductor | OFC oxygen free copper |
Cable Resistance | per 1 km (instrument) [Ω] 91. Per 1 km (audio) [Ω] 136. |
Cable Capacitance | per 1 m (audio) [pF] 68. |
Cable Screening | (audio) Copper spiral + filler strand. |
Overall Diameter | (instrument) Cu mesh screen + semiconductor. |
Cable Jacket | PVC |
