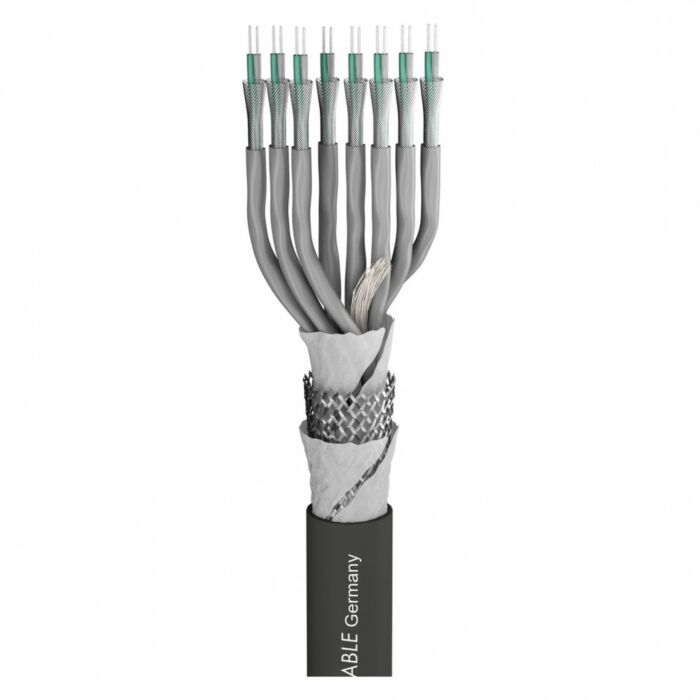

Sommer SC-Transfer AMCK; PUR Master-Blend. 8. 12. 16. 32. 48 Pair Multicore Cable. Tough Tour Grade

this is what all sound people, broadcasting and TV personnel have been waiting for! Together with leading sound companies and employees from different broadcasting stations our technicians have developed a new multipair cable for tough outdoor applications.

As of now the new SC-Transfer AMCK HIGHFLEX Multipair with the ”MASTER BLEND“ PUR jacket is available from stock.

This jacket is so notch-resistant and robust that we can grant you a 5 year warranty on the bulkware!
To keep it that way in the winter, we have fitted a high-quality, coldresistant and sturdy PUR jacket (PMB). This guarantees temperature stability down to –40 °C, furthermore it is also very heat- and notchresistant.

The PUR jacket and the wire insulation of a special TPC-ET were made for extreme applications, i.e. bending, dragging on the ground and even heavy tugging won’t barely harm this cable.

Of course, this cable can also be used as a high-quality stage or installation cable.

Advantages:

• Super small in diameter and very robust
• Extra paired insulation with a numbered PVC sleeve
• Excellent shielding against interference due to the dense overall screen made of a tinned Cu mesh plus a helical Cu mesh around each wire pair
• Very good audio transmission due to the tightly stranded copper wires

Application:

• Reelable cable for broadcasting and OB van
• Permanent indoor and outdoor installation
• Extremely robust stage cable for high-quality stagebox systems
• Perfect studio line due to the high protection against interference

Technical Data:

Article number: 100-0401

Name: SC-Transfer AMCK

• Number of Channels (audio): 8 - Jacket Ø: 9,90 mm
• Number of Channels (audio): 12 - Jacket Ø:  11.5mm
• Number of Channels (audio): 16 - Jacket Ø:  14.5mm
• Number of Channels (audio): 32 - Jacket Ø:  18.6mm
• Number of Channels (audio): 48 - Jacket Ø:  21.8mm

Properties:

• PUR
• OFC oxygen free copper
• Analog

Application area:

• Stage / live
• Mobile outdoor / indoor
• Studio / Broadcast
• Installation
• Multipair

Material

• Colour: black
• Signal transmission: symmetrical
• Construction: [08(2LI2Y0,14mm²)DY]CY
• Jacket material: PUR Master-Blend
• Jacket material (audio): PUR, Master Blend
• Jacket Ø: 0.3898 "

Electrical and Mechcanical

• Inner conductor (audio): 2
• Inner conductor (audio): 0,14 mm²
• Inner conductor (audio): 0.0002 sqin
• Inner conductor Ø (audio): 0,42 mm
• Inner conductor Ø (audio): 0.0165 "
• AWG (audio): 26
• Shielding: Copper spiral in pairs, overall shielding copper braiding,
• Shielding factor: 90 %
• Copper strands (audio): 18
• Copper strand Ø (audio): 0,10 mm
• Copper strand Ø (audio): 0.0039 "
• Conductor insulation material: PE
• Conductor insulation Ø: 0,85 mm
• Conductor insulation Ø: 0.0335 "
• UV-resistant: yes
• Fire load per m: 0,4 kWh
• Style variant: round
• Packing: bulk stock
• Temperature min.: -40 °C
• Temperature max.: 70 °C
• Capac. cond./cond. per 1 m (audio): 85 pF
• Capacity wire/wire at 1 ft. (audio): 25.908 pF
• Capac. cond./shield. per 1 m (audio): 140 pF
• Capacity wire/electic screen at 1 ft. (audio): 42.672 pF
• Impedance: 75 Ω
• Insulation resist. per 1 km: 1 GΩ
• Insulation resist. per 1000 feet: 0.3048 GΩ
• Insulation resist. per 1 km (audio): 1 GΩ
• Insulation resist. per 1000 feet (audio): 0.3048 GΩ
• Conductor resistance per 1 km: 138 Ω
• Conductor resistance per 1000 ft.: 42.0624 Ω
• Shield. resistance per 1 km: 125 Ω
• Shield. resistance per 1000 ft.: 38.1 Ω
• BPVo-Euroclass: Fca
