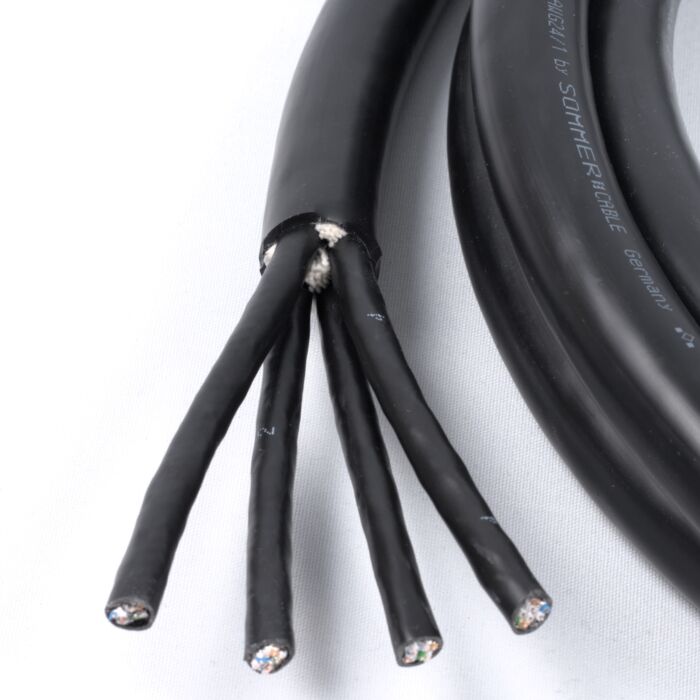

Sommer SC-Mercator. 4 x CAT.7. PVC. 17.40 mm. black - 580-0311-04

Advantages:

• Safe data transfer due to high-quality insulation and shielding
• Great durability due to a special, extremely robust jacket compound
• Outdoor temperature resistant, easy to reel

Application:

• For mobile OB van use and outdoor applications
• For all CAT.5e, CAT.6, CAT.6a and CAT.7 transmissions

Technical Data:

• Properties: Halogen-free / LSZH
• Properties: PUR
• Properties: Digital 110 ? AES / EBU
• Properties: OFC oxygen free copper
• Properties: FRNC flame retardant
• Application area: Installation
• Application area: Mobile outdoor / indoor
• Application area: Studio / Broadcast
• Colour: black
• Colour detailed: black
• Construction (network): SFTP 4x2x0,14mm² / 600 MHz
• Jacket material: PUR
• Jacket Ø: 6,5 mm
• Number of Channels (network): 1
• Inner conductor (network): 8
• AWG (network): 26
• Shielding: PimF, Copper braiding tin-plated
• Copper strands (network): 7
• Copper strand Ø (network): 0,16 mm
• Conductor insulation material: Foam / Skin-PE
• Weight per 1 m: 40 g
• UV-resistant: yes
• Fire load per m: 0,19 kWh
• Style variant: round
• Shielding factor: 100 %
• Packing: 500 m spool
• Packing: 100 m spool
• Velocity factor: 0,75
• Temperature min.: -20 °C
• Temperature max.: 60 °C
• Width: 6,5 mm
• Height: 6,5 mm
• Capacity wire/wire at 1m (network): 45 pF
• Impedance: 100 ?
• Insulation resist. per 1 km: 2 G?
• Insulation resist. per 1 km (network): 2 G?
• Loop resistance per km: 290 ?
