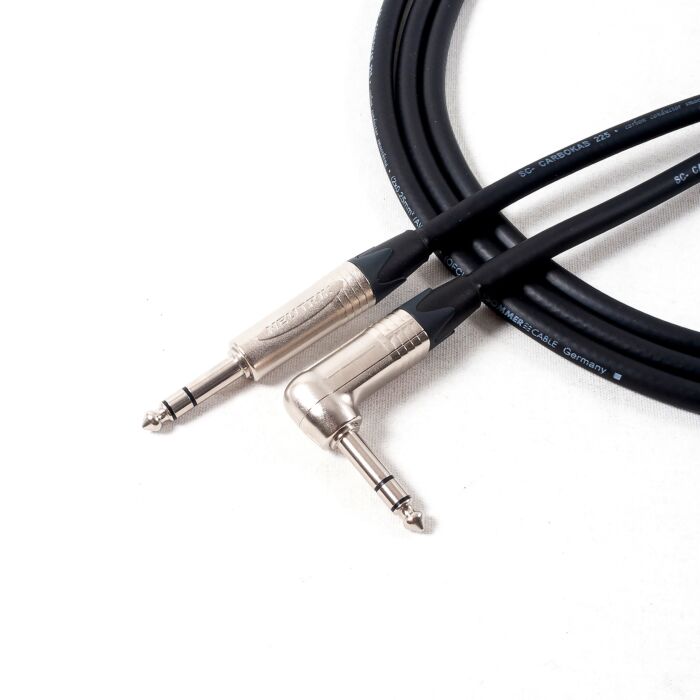

Sommer Carbokab Balanced Stereo Angled TRS Jack Lead
Multibuy discounts calculated at checkout
SC Carbokab ‘2 Core and Multi-Screen cable’ with ‘Carbon Conductor smoothing’ for excellent sonic performance.
SC Carbokab ‘2 Core and Multi-Screen cable’ with ‘Carbon Conductor smoothing’ for excellent sonic performance.
This range of balanced leads uses Sommer’s SC Carbokab ‘2 Core and Multi-Screen cable’. The cable utilises ‘Carbon Conductor smoothing’ around the centre core to vastly improve the signal transmission. The smoothing is essentially a carbon wrap that makes the centre core act like a solid core of copper and not individual strands. This gives you the sonic benefits of a single core cable but the flexibility and durability of stranded core.
Advantages:
- Linear audio transmission due to carbon conductor smoothing to emulate the benefits of a solid wire
- Low capacitance due to the use of the HD-PP high-end insulating material
- Excellent shielding with Cu mesh screen (+ drain wire) and AL fleece
- High conductivity due to the use of OFC 6 (oxygen-free class 6) copper
Application:
- Highly professional studio and installation technology
- Demanding OB van technology for radio and broadcasting
- First-class hifi connection (red and white conductors on pin 1, separate shielding)
Carbokab Technical Data:
- Properties: Digital 110 Ω AES / EBU
- Properties: OFC oxygen free copper
- Colour: black
- Jacket material: S-PVC
- Jacket Ø: 7,60 mm
- Inner conductor (audio): 0,25 mm². AWG (audio): 23
- Shielding: Copper braiding tin-plated 95% + AL-fleece + filler strand
- Shielding factor: 100 %
- Copper strands (audio): 65
- UV-resistant: yes
- cond./shield. per 1 m (audio): 90 pF
- Impedance: 110 Ω
- Conductor resistance per 1 km: 78 Ω
Neutrik Connectors Technical Data:
The stylish looking connectors use Neutriks rugged chuck type cable strain relief along with a tough polyurethane boot and die cast metal casing.
The Silver Contacts are made from bronze and plated with silver. The conductivity is superior to gold.
Electrical
- Capacitance between contacts - ≤ 4 pF
- Rated current per contact - 16 A
- Rated voltage - 50 V
Materiel
- Boot - Polyurethane
- Contact plating - 2 µm Ag
- Contacts - Bronze (CuSn8)
- Locking element - Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
- Shell - Zinc diecast (ZnAl4Cu1)
- Shell plating - Nickel
Delivery Speed | Made to Order - Next Day Delivery Available |
---|---|
Cable Capacitance | cond./cond. per 1m (audio) [pF] 46 |
Cable Resistance | Conductor resistance per 1000ft. [Ω] 23,7744 |
Cable Conductor | AWG (audio) 23 |
Cable Screening | Copper braiding tin-plated 95% + AL-fleece + filler strand |
Cable Jacket | S-PVC |
Overall Diameter | 7.6 |
Cable Brand | Sommer |
Application | Studio Grade |
Contact Material | Silver Plated |
Number of Contacts | 3 Pole |
