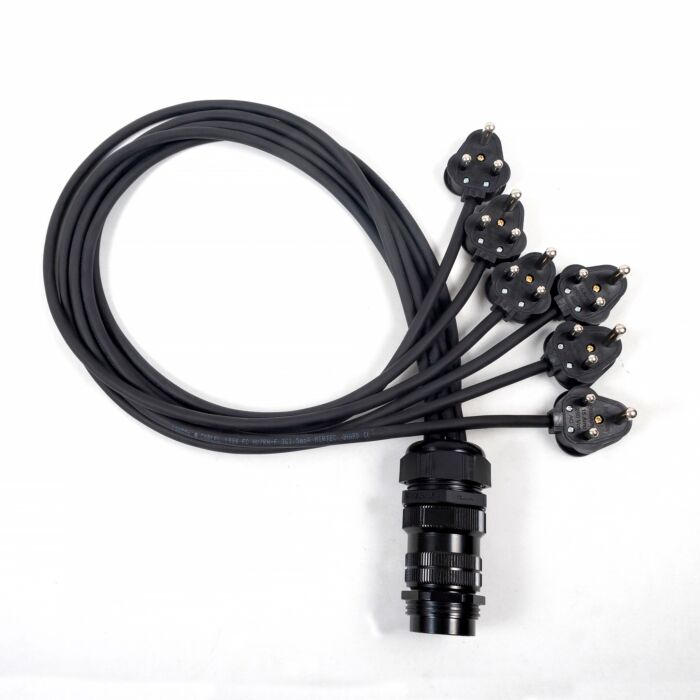

Socapex Spider - 15amp Round Pin Plug to 19 Pole Female Soca

Commonly used in the entertainments industry for lighting rigs. Socapex Spiders couple, by bayonet fitting, to the end on an extension cable, giving you a secure and safe way of splitting out the power.

We will only ever use high quality Socapex connectors, but may vary the brand between VDM and Ten47 depending on availability.

Conductor Size- The size of cable you require will depend on the design current and length. Here is a very handy calculator to help you choose the correct cable VOLTDROP CALCULATOR

3x1.5mm = 16amp Max

3x2.5mm = 20amp Max

Staggered Tails

As standard we use the following order for Staggering tails, but this can be adjusted to suit....

Channel 1 – 50cm tail

Channel 2 – 1m tail

Channel 3 – 1m 50cm tail

Channel 4 – 2m tail

Channel 5 – 2m 50cm tail

Channel 6 – 3m tail

• 6x) Masterplug HDPT15B 15A Heavy Duty Round 3 Pin Rubber Plug, sleeved pins.
• 19 pole Female Socapex with silver solder contacts and IP68 rated 6 way cable gland.
• Ingress Protection of Socapex - IP67 watertight when mated.
• Compatible with Socapex 419 series.
• Machined aluminium alloy body with black painted finish.
• H07RN-F Tough rubber cable - Oil resistant, flexible, and UV-resistant.
