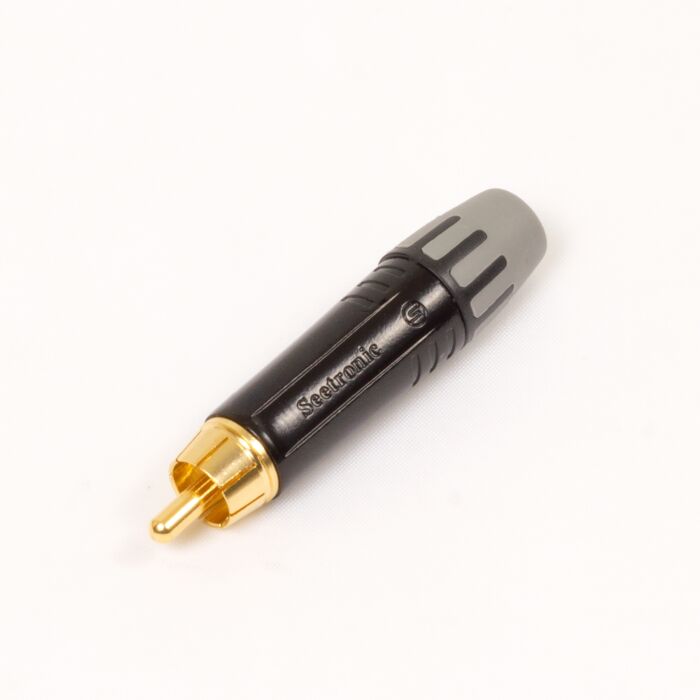

Seetronic MT380 Phono RCA Cinche Connector. HiFi Male Plug. Black Marking
£1.76
In stock
We have 310 items in stock!
SKU
SEE_MT380
Multibuy discounts calculated at checkout
- Buy 5 for £1.67 each and save 5%
- Buy 10 for £1.58 each and save 10%
- Buy 15 for £1.50 each and save 15%
- Buy 20 for £1.41 each and save 20%
Simplicity is key when it comes to connector assembly, these have 4 integral parts that lock together when assembled and squeeze down on to the cable to ensure a rock-solid termination that will not come un-stuck without disassembly.
Simplicity is key when it comes to connector assembly, these have 4 integral parts that lock together when assembled and squeeze down on to the cable to ensure a rock-solid termination that will not come un-stuck without disassembly.
Professional RCA plug with a black plated shell and gold-plated contacts. For cables with O.D.：3.5 - 6.5mm. Primarily used for transmitting digital audio signals and analogue video signals. Offers excellent contact performance and stable signal transmission. The high-quality structural design and sophisticated manufacturing materials ensure the plug has an expected lifetime of 2000 cycles.
- Rated current - depends on mating connector
- Rated voltage - ＜50V
- Contact resistance - >10GmΩ
- Dielectric strength - 1500V DC
- Insulation resistance - ＞5GΩ
- Contact capacitance - ≤7pF
- Service life - ＞2000
- Max Conductor Size - 16AWG / 1.5mm²
- Max Cable OD - 3.5-6.5mm
- Shell - Zinc diecast
- Contacts - Brass
- Contact surface – AU
- Strain relief - POM
- Flame-retardant grade - UL94-HB
- Temperature range - -30°C to +80°C
- Electroplating Standard - IEC 68-2-20
- Standard - IEC 601-14
- Protection level - IP40
- Made in China
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Solder |
| Contact Material | Gold Plated |
| Number of Contacts | 2 Pole |
| Pack Quantity | Pack of 1 |
