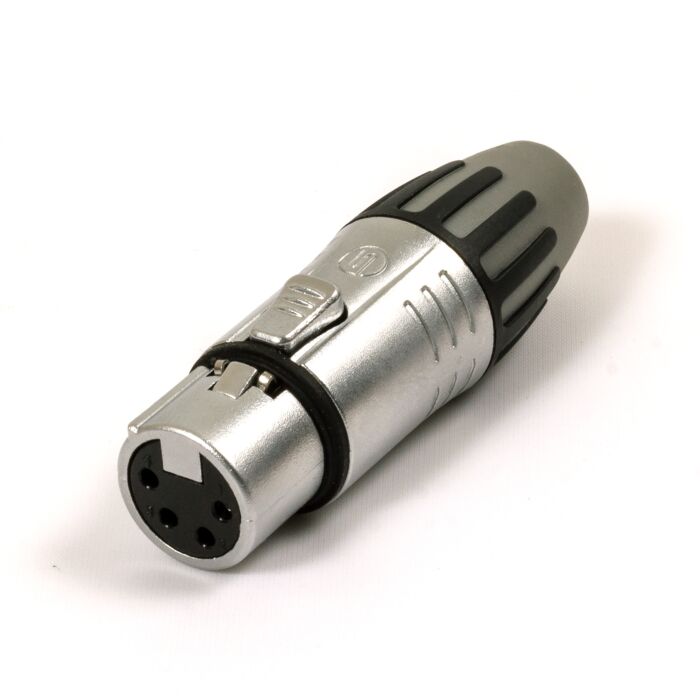

SEETRONIC 4 Pin Female XLR Connector. SCMF4. Microphone. DC Power. Headphone Amp
£2.43
In stock
We have 576 items in stock!
SKU
SEE_SCMF4
Multibuy discounts calculated at checkout
- Buy 5 for £2.31 each and save 5%
- Buy 10 for £2.19 each and save 10%
- Buy 15 for £2.07 each and save 15%
- Buy 20 for £1.94 each and save 20%
4 Pin Female Silver XLR connectors. Chromium plated housing and Tin Plated contacts.
This classic looking XLR connector uses Seetronics rugged chuck type cable strain relief along with a tough polyurethane boot and die cast metal casing. Simplicity is key when it comes to connector assembly, these have 4 integral parts that lock together when assembled and squeeze down on to the cable to ensure a rock-solid termination that will not come un-stuck without disassembly. Seetronic represent excellent value for money
Commonly used for connecting; DC power lines in professional camera rigs and Balanced Headphones connecting to Headphone amplifiers
- Dielectric strength: 1.5kVdc
- Insulation resistance: >10GΩ (initial)
- Rated current per contact: 16A
- Rated voltage: <50V
- Insertion force: ≤ 20N
- Withdrawal force: ≤ 20N
- Service life: 1000 mating cycles
- Wire size: Max. 2.5 mm²/14 AWG
- Locking device: Latch lock
- Boot: Polyurethane
- Contacts: Cu alloy
- Contact plating: Sn
- Insert: Polyamide (PA 66 +30 % GF)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Cr
- Strain relief: Polyacetal (POM)
- Flame-retardant grade: UL 94 HB
- Protection class: IP40
- Temperature range: -30℃to +80℃
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Solder |
| Contact Material | Tin Plated |
| Number of Contacts | 4 Pole |
| Pack Quantity | Pack of 1 |
