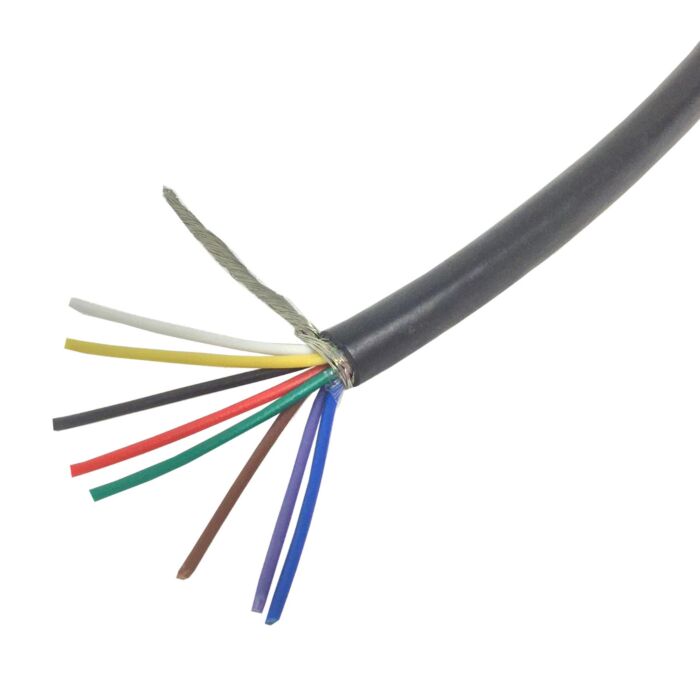

Screened 8 Core Defence Standard Cable. 72-8-C. Din. DC Power data RS232 bulk
As low as
£0.39
In stock
SKU
DEF.SPEC.72-8-C.SCREENED
Multibuy discounts calculated at checkout
A very useful cable for use in RS232 communication and unpaired / unbalanced data comms. The cable can be used in the termination of Midi / Din cables and low current circuits. 2, 4, 8, 12 core versions available in both screened and unscreened variants.
A very useful cable for use in RS232 communication and unpaired / unbalanced data comms. The cable can be used in the termination of Midi / Din cables and low current circuits. 2, 4, 8, 12 core versions available in both screened and unscreened variants.
24 AWG multi core flexible cables. A very useful cable for use in RS232 communication and unpaired / unbalanced data comms. The cable can be used in the termination of Midi / Din cables and low current circuits. 2, 4, 8, 12 core versions available in both screened and unscreened variants. They are extensively used in aircraft, process control systems, computers, data processors, military vehicles and military equipment.
**Not to be used for direct connection to mains supply.
Technical Info
- Conductor: Tinned annealed flexible copper
- Insulation: LSZH (Low smoke zero halogen)
- Sheath: LSZH (Low smoke zero halogen)
- Tinned Copper Braided Shield
- Colour: Black
- Conductor size: 0.22mm²
- Stranding: 7/.2mm
- Diameter over conductor: 0.6mm
- Nominal overall diameter of core: 1.20mm
- Current rating: 1.0 amps Max
- Overall Diameter: 6mm
- conductor resistance at 20°C: 92ohms DC/KM
- Voltage: 440v
- Minimum bending radius: 6 x overall diameter
- Standards: Defence standard 61-12 Part 5: Wires, cords & cables, electrical
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Type | Defence Standard |
| Cable Brand | Un-Branded |
| Cable Conductor | - |
| Cable Resistance | - |
| Cable Capacitance | - |
| Cable Screening | - |
| Overall Diameter | 6.5mm |
| Cable Jacket | - |
