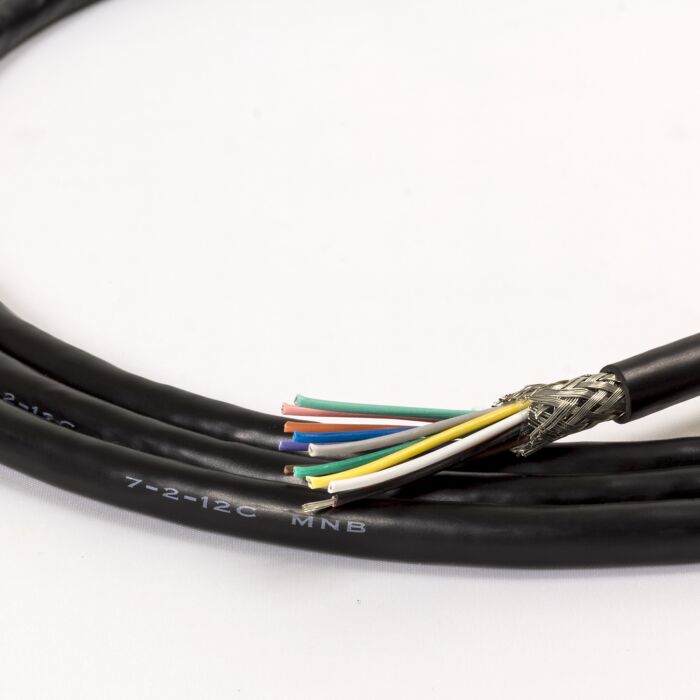

Screened 12 Core Defence Standard Cable. 72-12-C. Din. DC Power data RS232 bulk
As low as
£0.67
In stock
SKU
CABLE.DEF.72-12-C(screened)-PRNT
Multibuy discounts calculated at checkout
A very useful cable for use in RS232 communication and unpaired / unbalanced data comms.
24 AWG multi core flexible cables. A very useful cable for use in RS232 communication and unpaired / unbalanced data comms. 2, 4, 6, 8, 10, 12, 25 core versions available in both screened and unscreened variants. They are extensively used in aircraft, process control systems, computers, data processors, military vehicles and military equipment.
**Not to be used for direct connection to mains supply.
Technical Info
- Conductor: Tinned annealed flexible copper
- Insulation: LSZH (Low smoke zero halogen)
- Sheath: LSZH (Low smoke zero halogen)
- Screening: Foil Screen and Drain wire
- Colour: Black
- Conductor size: 0.25mm² (24awg)
- Conductor Count: 12
- Stranding: 7/.2mm
- Diameter over conductor: 0.6mm
- Overall Diameter: 12mm
- Nominal overall diameter of core: 1.20mm
- Current rating: 1.0 amps Max
- conductor resistance at 20°C: 92ohms DC/KM
- Voltage: 440v
- Minimum bending radius: 6 x overall diameter
- Standards: Defence standard 61-12 Part 5: Wires, cords & cables, electrical
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Type | Defence Standard |
| Cable Brand | designacable |
| Cable Conductor | Tinned annealed flexible copper - 0.25mm² (24awg) - Stranding: 7/.2mm |
| Cable Resistance | Conductor resistance at 20°C: 92ohms DC/KM |
| Cable Screening | Foil Screen and Drain wire |
| Overall Diameter | 7mm |
| Cable Jacket | PVC LSZH (Low smoke zero halogen) |
