RG58 Standard 50ohm Coax
As low as
£0.17
In stock
SKU
CABLE.RG58.50ohm.COAX.BK
Multibuy discounts calculated at checkout

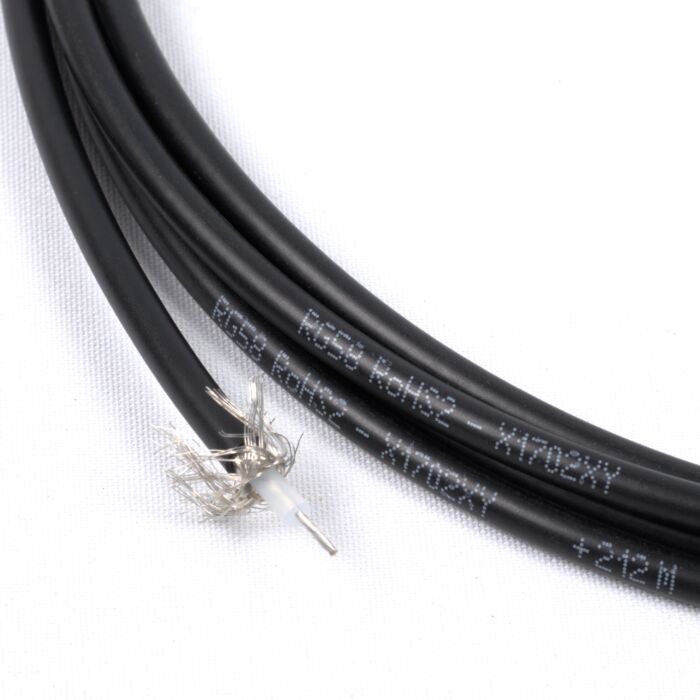

RG58 Type 50ohm Coaxial Cable PVC Cable for use with low-power signal and RF connections.
Electrical Characteristics at 20°C
Characteristic Impedance (Ω): 50±3
Conductor DC Resistance (Ω/km): ≤40.7
Capacitance (pF/m): 100
Velocity Ratio (%): 66
Attenuation (dB/100m):
10MHz - 4.50
200MHz - 21.60
400MHz - 30.50
Compliance
RoHS II Directive (2011/65/ EU & 2015/863)
REACH (1907/2006)
Construction
Conductor
Material: Tinned Copper
Construction: 19/0.18mm
Dielectric
Material: Solid Polyethylene
Diameter: 2.95mm
Braid Screen
Material: Tinned Copper Clad Aluminium
Construction: 0.12mm x 16 x 6 (85%)
Sheath
Material: Polyvinyl Chloride
Diameter: 4.95mm
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Cable Type | Coaxial - 50ohm, 75ohm, SDI |
| Cable Brand | Un-Branded |
