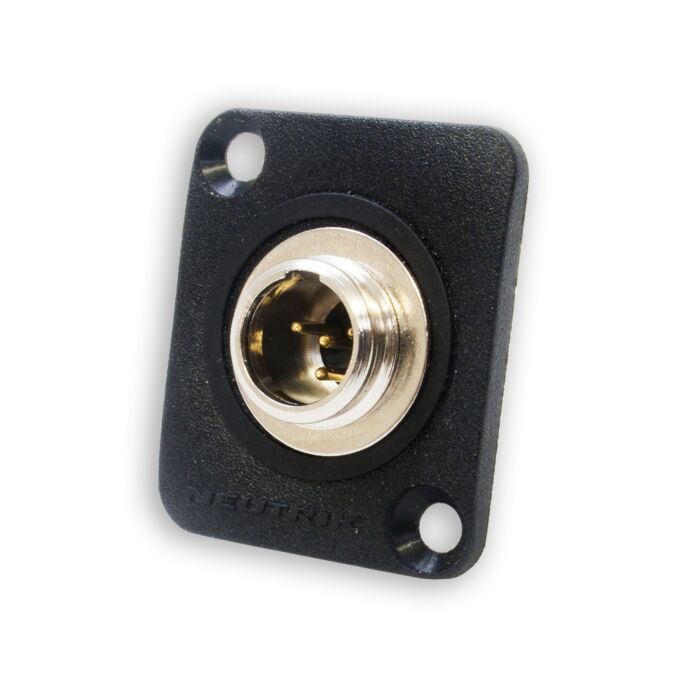

REAN RT4MP Mini 4 Pin XLR Circular Chassis Panel Mount Connector. D-Dtype Panel
REAN RT4MP Mini 4 Pin XLR Circular Chassis Panel Mount Connector. D-Dtype Panel
£8.19
In stock
We have 276 items in stock!
SKU
CHASSIS_RT4MP.DTYPE.PANEL
Multibuy discounts calculated at checkout
-
Buy 5 for
£7.78
each and save 5%
-
Buy 10 for
£7.37
each and save 10%
-
Buy 15 for
£6.96
each and save 15%
-
Buy 20 for
£6.55
each and save 20%
4 pole TINY xlr male chassis connector, nickel housing, gold plated contacts, max. panel thickness: 6 mm. Mounted into a Neutrik D-Type Panel
RT4MP
4 pole TINY xlr male chassis connector, nickel housing, gold plated contacts, max. panel thickness: 6 mm. Mounted into a Neutrik D-Type Panel
- Front mountable design
- Shielded system – high noise immunity and EMI protection
- Watertight chassis connector, even in unmated condition
Electrical
- Contact resistance - < 10 mΩ
- Dielectric strength - > 0.5 kVdc
- Insulation resistance - > 1 GΩ
- Rated current per contact - < 5 A
Mechanical
- Lifetime - > 5000 mating cycles
- Panel thickness - max. 6 mm
- Wiresize - 0.22 mm²
- Wiresize - 24 AWG
Material
- Contact plating - Au
- Contacts - Brass (CuZn38Pb3)
- Insert - PA 6.6 30 % GF
- Shell - ZuAl4Cu1
- Shell plating - Nickel
Environmental
- Solderability - Complies with IEC 68-2-20
- Temperature range - -30 °C to +85 °C
More Information
Delivery Speed |
Next Day delivery available if 'In Stock' |
Mounting Method |
Panel Mount - Solder |
Contact Material |
Gold Plated |
Number of Contacts |
4 Pole |
Pack Quantity |
Pack of 1 |
