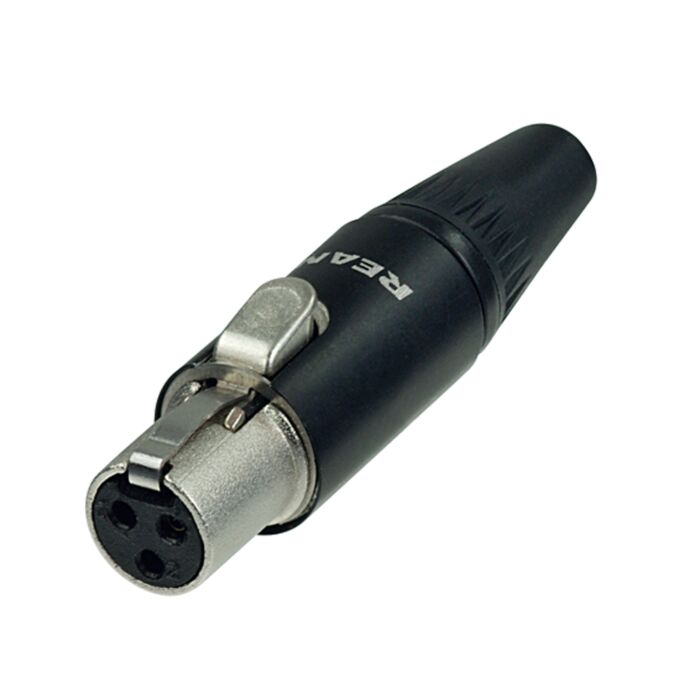

Rean 3 Pin RT3FC-B TINY XLR Connector
£2.94
In stock
We have 494 items in stock!
SKU
MiniXLR_RT3FCB
Multibuy discounts calculated at checkout
- Buy 5 for £2.79 each and save 5%
- Buy 10 for £2.65 each and save 10%
- Buy 15 for £2.50 each and save 15%
- Buy 20 for £2.35 each and save 20%
The new Tiny XLR from Rean. The ideal connector for wireless mic systems and radio mics, including AKG, X-Wire, Samson.
The new Tiny XLR from Rean. The ideal connector for wireless mic systems and radio mics, including AKG, X-Wire, Samson.
RT3FCB
3pole, mini XLR, black metal shell, gold plated contacts
These sturdy little XLRs are used alongside most wireless instrument transmitters to connect the instrument to the transmitter itself. A sturdy connector with ‘Chuck type’ internal cable strain relief that ratchets itself onto the cable.
Mechanical
- Cabel O.D. - 2.0 - 4.5 mm
- Lifetime - > 1000 mating cycles
- Wire size - 0.22 mm²
- Wire size - 24 AWG
- Wiring - Solder contacts
Material
- Bushing - ABS
- Contact plating - Au
- Contacts - Bronze (CuSn6)
- Insert - PA 6 30 % GR
- Shell - Zinc diecast (ZnAl4Cu1)
- Shell plating - Black
- Strain relief – PVC
Environmental
- Solder ability - Complies with IEC 68-2-20
- Temperature range - -30 °C to +85 °C
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Solder |
| Contact Material | Gold Plated |
| Number of Contacts | 3 Pole |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
