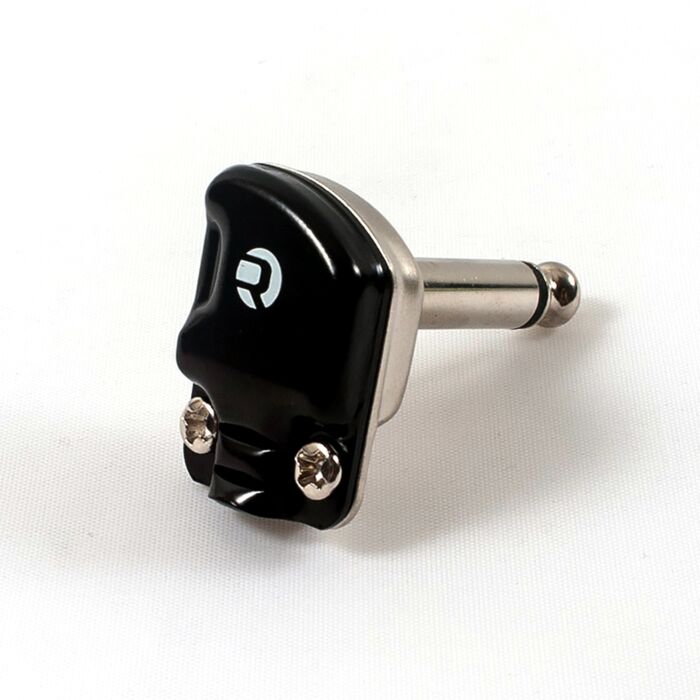

REAN by Neutrik FX Pancake Jack Plug. Effects Pedal Connector. RP2RCF-BAG Black
£2.54
In stock
We have 114 items in stock!
SKU
JACKS_RP2RCF-BAG-S
Multibuy discounts calculated at checkout
- Buy 5 for £2.41 each and save 5%
- Buy 10 for £2.29 each and save 10%
- Buy 15 for £2.16 each and save 15%
- Buy 20 for £2.03 each and save 20%
Mono 1/4" right-angle pan head plug featuring a black plated housing and nickel plated contacts.
Technical information
Product
Title - RP2RCF
Connection Type - Plug
Electrical
- Contact resistance - depends on mating connector mΩ
- Dielectric strength - 0.5 kV dc
- Insulation resistance - > 1 GΩ
Mechanical
- Lifetime - > 1000 mating cycles
- Insertion and Withdrawal force - ≤ 60N
- Cable O.D. - 4 - 7 mm
Material
- Sleeve & Inner - Brass
- Sleeve plating - Nickel
- Inner plating - Nickel / Gold
- Shell - Steel
- Shell plating - Nickel / Black
Environmental
- Temperature range - -20 °C to +70 °C
- Flammability - UL 94 HB
- Solderability - complies with IEC68-2-20
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Solder |
| Series Range Name | Pancake Jacks |
| Contact Material | Silver Plated |
| Number of Contacts | 2 Pole |
| Pack Quantity | Pack of 1 |
