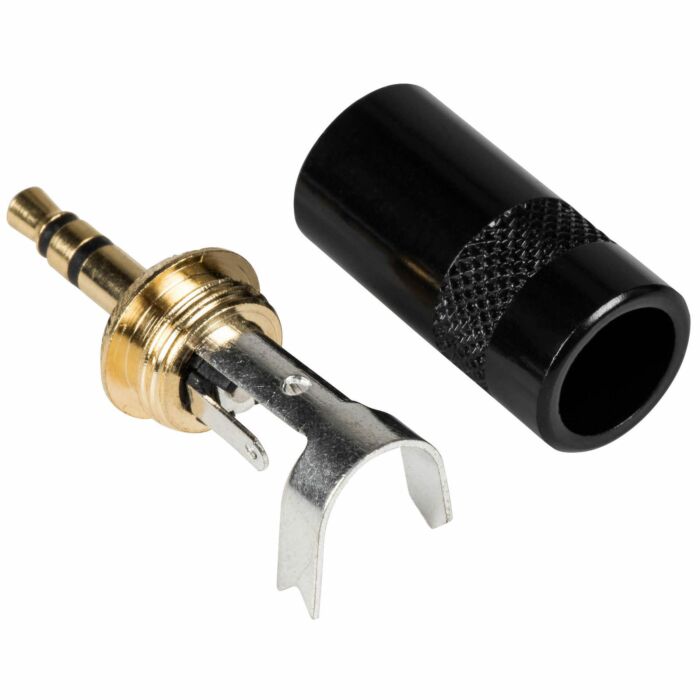

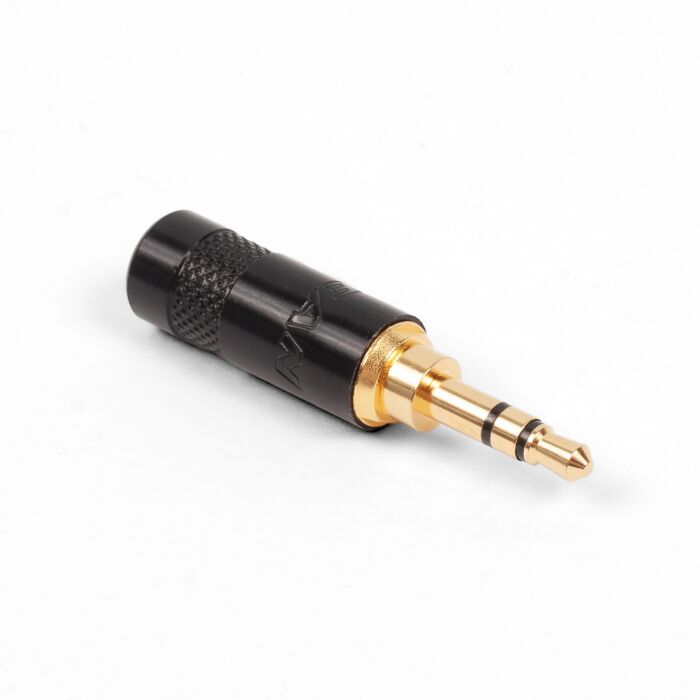

REAN Stereo NYS231BG-LL Extra large entry 3.5mm Mini Jack plug (8mm)
£2.33
In stock
We have 755 items in stock!
SKU
MINI.JACK_NYS231BG-LL
Multibuy discounts calculated at checkout
- Buy 5 for £2.21 each and save 5%
- Buy 10 for £2.10 each and save 10%
- Buy 15 for £1.98 each and save 15%
- Buy 20 for £1.86 each and save 20%
3 pole 3.5 mm plug, black metal handle, gold plated contacts, up to 8 mm cable diameter
Product
Title - NYS231BG-LL
Connection Type - Plug
Gender - male
Electrical
Dielectric strength - 0.5 kVdc
Insulation resistance - ≥ 1 GΩ
Rated current - depends on mated connector
Contact resistance - depends on mated connector
Mechanical
Cable O.D. - 8 mm
Insertion force - ≤ 20 N
Withdrawal force - ≥ 10 N
Lifetime - 1000 mating cycles
Material
Contact plating - Au
Contacts - Brass (CuZn39Pb3)
Shell - Zinc diecast (ZnAl4Cu1)
Shell plating - Black
Strain relief - SnCe plated, crimp type
Insulation - Thermoplastic
Environmental
Solderability - Complies with IEC 68-2-20
Temperature range - -25 °C to +70 °C
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Solder |
| Contact Material | Gold Plated |
| Number of Contacts | 3 Pole |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
