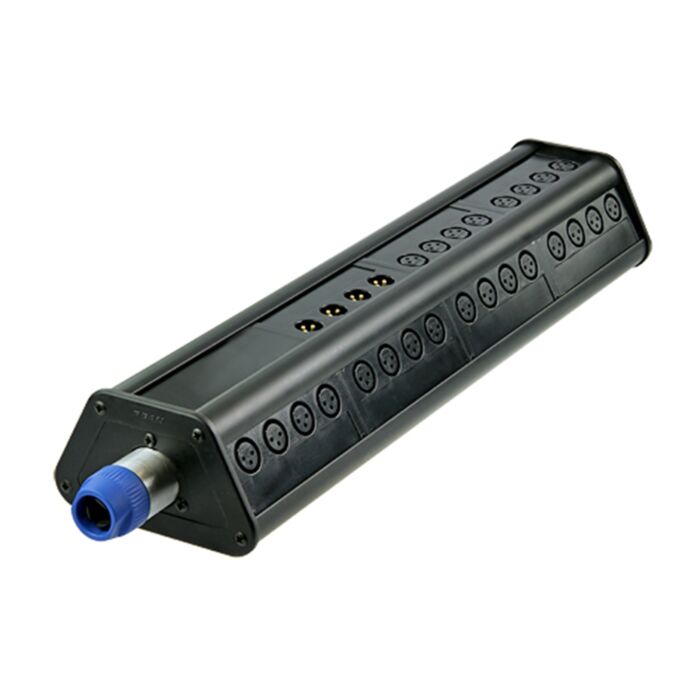

Rean Length 4 NSB4A-40.4 Stage Box 40 IN and 4 OUT
£135.52
Available for Pre-Order
SKU
METAL_NSB4A-40.4
Multibuy discounts calculated at checkout
- Buy 5 for £128.74 each and save 5%
- Buy 10 for £121.97 each and save 10%
- Buy 15 for £115.19 each and save 15%
- Buy 20 for £108.42 each and save 20%
Type A, length 4, 40 IN (female/send) and 4 OUT (male/return)
Width: 134 mm, height: 79 mm, length: 491 mm
Supplied as disassembled set comprising of all hardware parts including plates, profiles, strain relief, end pieces and screws. Labels for channel numbering not included.
Type A, length 4, 40 IN (female/send) and 4 OUT (male/return)
Width: 134 mm, height: 79 mm, length: 491 mm
Supplied as disassembled set comprising of all hardware parts including plates, profiles, strain relief, end pieces and screws. Labels for channel numbering not included.
Technical Information
Product
Title - NSB4A-40/4
Electrical
- Contact resistance - < 5 mΩ
- Dielectric strength - 0.5 kVdc
- Insulation resistance - ≥ 1 GΩ
- Rated current per contact - 2 A
Mechanical
- Cable O.D. - 15 - 20 mm multicore
- Insertion force - ≤ 10 N
- Withdrawal force - ≥ 10 N
- Lifetime - > 1000 mating cycles
- Wiresize - 0.22 and 0.14 mm²
- Wiresize - 24 and 26 AWG
Material
- Shell - Aluminium
- Quad plates - POM
- End Pieces - Thermoplastic
Environmental
- Temperature range - -25 °C to +70 °
