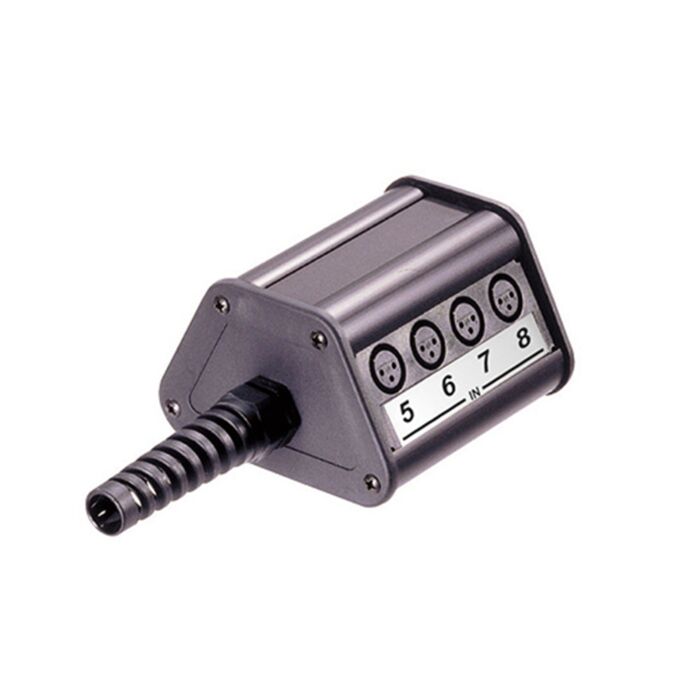

Rean Length 1 NSB1B-8.0 Stage Box 8 IN
£60.31
Available for Pre-Order
SKU
METAL_NSB1B-8.0
Multibuy discounts calculated at checkout
- Buy 5 for £57.29 each and save 5%
- Buy 10 for £54.28 each and save 10%
- Buy 15 for £51.26 each and save 15%
- Buy 20 for £48.25 each and save 20%
Type B, length 1, 8 IN (female/send)
Width: 117 mm, height: 79 mm, length: 132 mm
Supplied as disassembled set comprising of all hardware parts including plates, profiles, strain relief, end pieces and screws. Labels for channel numbering not included.
Type B, length 1, 8 IN (female/send)
Width: 117 mm, height: 79 mm, length: 132 mm
Supplied as disassembled set comprising of all hardware parts including plates, profiles, strain relief, end pieces and screws. Labels for channel numbering not included.
Technical Information
Product
- Title - NSB1B-8/0
Electrical
- Contact resistance - < 5 mΩ
- Dielectric strength - 0.5 kVdc
- Insulation resistance - ≥ 1 GΩ
- Rated current per contact - 2 A
Mechanical
- Cable O.D. - 10 - 14 mm multicore
- Insertion force - ≤ 10 N
- Withdrawal force - ≥ 10 N
- Lifetime - > 1000 mating cycles
- Wiresize - 0.22 and 0.14 mm²
- Wiresize - 24 and 26 AWG
Material
- Shell - Aluminium
- Quad plates - POM
- End Pieces - Thermoplastic
Environmental
- Temperature range - -25 °C to +70 °C
