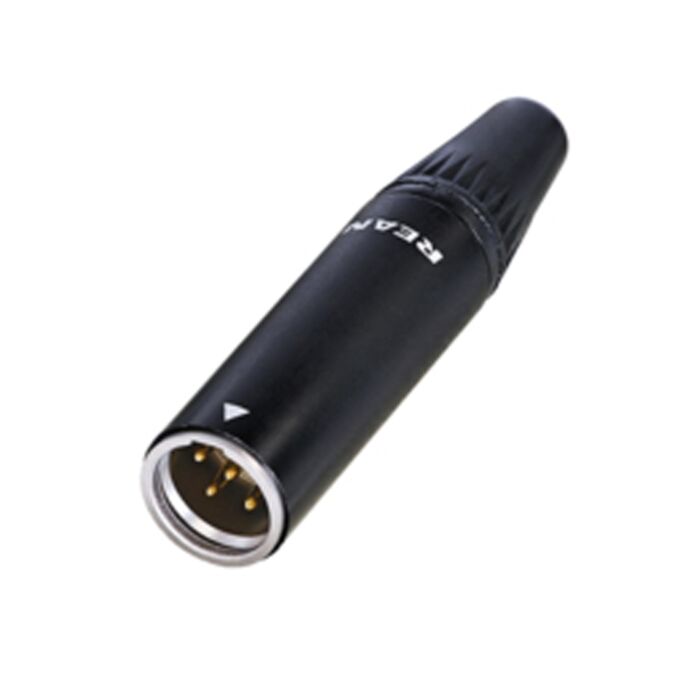

Rean 5 Pin RT5MC-B TINY XLR Connector
£3.80
In stock
We have 516 items in stock!
SKU
MiniXLR_RT5MCB
Multibuy discounts calculated at checkout
- Buy 5 for £3.61 each and save 5%
- Buy 10 for £3.42 each and save 10%
- Buy 15 for £3.23 each and save 15%
- Buy 20 for £3.04 each and save 20%
5 pole male XLR connector
Technical Information
Title - RT5MC-B
Connection Type - XLR
Electrical
- Contact Resistance - <10 mΩ
- Insulation Resistance - >1 GΩ
- Dielectric strength - >500 V rms
- Rated current per contact - ＜5 A
Mechanical
- Cable O.D. range - 2.0-4.5 mm
- Lifetime - >1000 Mating Cycles
- Wiresize - 0.22 mm²
- Wiresize - 24 AWG
Material
- Housing - Zinc
- Tube - Aluminum
- Pin - Brass
- Plastic Body - PA6+30%GF
- Ground Contact - Bronze
- Chuck - POM
- Boot - PC/ABS+TPU
- Housing - Nickel Plating
- Tube - Black Plating
- Pin - Gold Plating
- Ground Contact - Tin and Cer
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Solder |
| Contact Material | Gold Plated |
| Number of Contacts | 5 Pole |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
