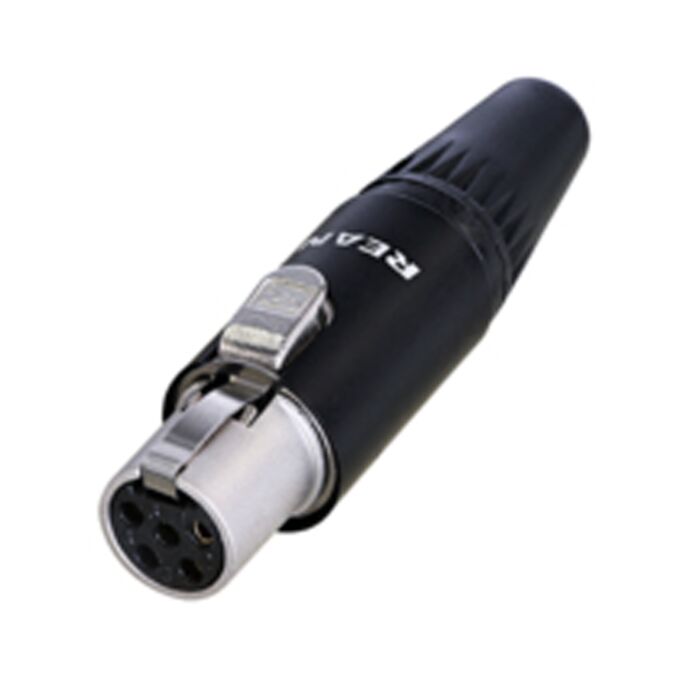

Rean 5 Pin RT5FC-B Tiny XLR Connector
£4.02
In stock
We have 317 items in stock!
SKU
MiniXLR_RT5FC-B
Multibuy discounts calculated at checkout
- Buy 5 for £3.82 each and save 5%
- Buy 10 for £3.62 each and save 10%
- Buy 15 for £3.42 each and save 15%
- Buy 20 for £3.22 each and save 20%
5 pole female tiny XLR cable connector
Technical Information
Product - RT5FC-B
Connection Type - XLR
Electrical
- Contact Resistance - ≤10 mΩ
- Insulation Resistance - >1 GΩ
- Dielectric Strength - >500 V rms
- Rated current per contact - ＜5 A
Mechanical
- Cable O.D. Range - 2.0-4.5mm
- Lifetime - >1000 Mating Cycles
- Wiresize - 0.22 mm²
- Wiresize - 24 AWG
Material
- Ground Contact - Steel
- Rubber Spring - Rubber
- Latch - Zinc
- Chuck - POM
- Boot - PC/ABS+TPU
- Housing - Zinc
- Plastic housing - PA6+30%GF
- Jack - Bronze
- Ground Contact - Bronze
- Tube - Aluminum
- Latch - Nickel Plating
- Housing - Nickel Plating
- Jack - Gold Plating
- Ground Contact - Tin and Cer
- Tube - Black Plating
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Solder |
| Contact Material | Gold Plated |
| Number of Contacts | 5 Pole |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
