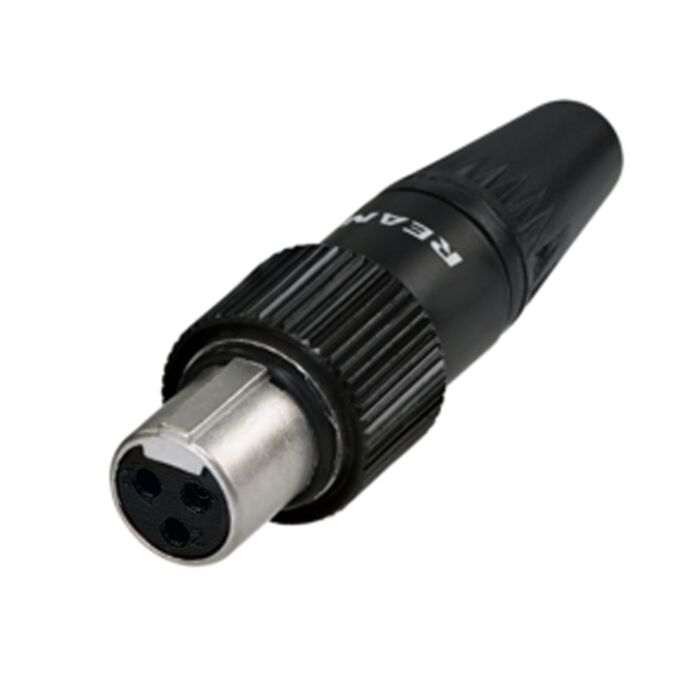

Rean 3 Pin RT3FCT-B Tiny XLR Connector - With Locking Screw
Rean 3 Pin RT3FCT-B Tiny XLR Connector - With Locking Screw
£4.56
In stock
We have 318 items in stock!
Multibuy discounts calculated at checkout
-
Buy 5 for
£4.33
each and save 5%
-
Buy 10 for
£4.10
each and save 10%
-
Buy 15 for
£3.88
each and save 15%
-
Buy 20 for
£3.65
each and save 20%
3 pole female TINY xlr cable connector with screw locking. Compatible with TA3 style connections. Black plated housing, gold plated contacts
3 pole female TINY xlr cable connector with screw locking. Compatible with TA3 style connections
Technical Information
- Title - RT3FCT-B
- Connection Type - XLR
Electrical
- Contact Resistance - ≤10 mΩ
- Insulation Resistance - >1 GΩ
- Dielectric Strength - >500 V rms
Mechanical
- Cable O.D. Range - 2.0-4.5mm
- Lifetime - >1000 Mating Cycles
Material
- Housing - Zinc
- Nut - Aluminum
- Tube - Aluminum
- Jack - Bronze
- Plastic housing - PA6+30%GF
- Rubber Ring - Rubber
- Locking Spring - Steel
- Ground Contact - Bronze
- Chuck - POM
- Boot - PC/ABS+TPU
- Housing - Nickel Plating
- Jack - Gold Plating
- Ground Contact - Tin and Cer
- Nut - Black Plating
- Tube - Black Plating
More Information
Delivery Speed |
Next Day delivery available if 'In Stock' |
Mounting Method |
Cable Mount - Solder |
Contact Material |
Gold Plated |
Number of Contacts |
3 Pole |
Pack Quantity |
Pack of 1 |
Manufacturer URL |
Download Data Sheet
|
Data Sheet URL |
Download Data Sheet
|
