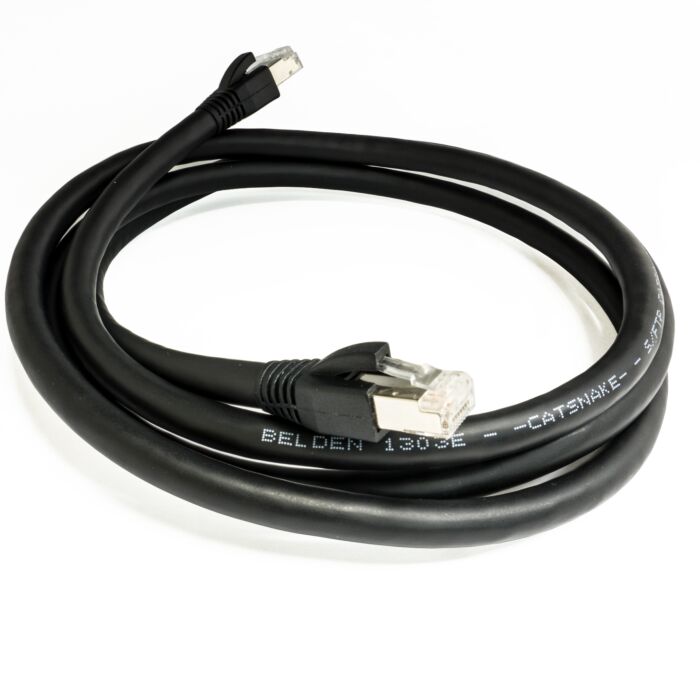

Belden 1303E Cat6a, CatSnake Ethernet Network Cable. Flexible SFTP

Premium quality Cat6a data cables. Manufactured with Belden 1303E Catsnake cable and quality shielded RJ45 connectors with a metal shroud

In order to minimise any unwanted interference each pair of conductors is foil screened; this then works in conjunction with the integral overall-braided shield to reduce EMI. You have the option above to have the shield 'connected' or left 'floating', this will depend on your equipment and personal preference. If left floating then this cable will not perform to Cat6a specifications, but will still function perfectly well as Cat5e, which is the most common type of specification in HiFi setups

The cable has two jackets; the first tightly holds the conductors in place so they do not move around. The second is made from a tubular style rugged PVC, this makes the cable durable and easy to coil

These cables are commonly used in hi-end HiFi systems to connect streaming devices within the setup. For example, your NAS or laptop to your router

• Premium Belden 1303E Catsnake cable
• Shielded RJ45 connectors with a metal shroud
• Precision tools used to crimp plugs
• 10 colours of boot/gland available for identification
• Cables with 'Shield connected at one side only' will have a Heatshrink label applied to the cable, at the grounded side.

Field deployable CAT6a patch horizontal and building backbone cable; CobraNEt, eSnake, Ethersound, Digital audio over Ethernet; Support current and future Category 6A and 6 applications, such as: 10GBase - T(10 Gigabit Ethernet), 1000 Base - T (Gigabit Ethernet), 100 Base - T, 10 Base - T, FDDI, ATM; Compatible connectors Belden R301601 000S1 (T568A) and R301602 000S1 (T568B)

In our permanent quest to improve on what we do, we decided to improve our testing rig by employing a Fluke LinkIQ verifier. We can now verify that our Cat5e, Cat6 and Cat6a cables perform to the requirements of ISO/IEC 11801, at the lengths we state. All our cables now go through a thorough 'real world' test before dispatch. We use 'Verification' for short patch leads, and 'Verification' and 'Live Testing' for any cables over 40m, including reel-systems.

*Check out our ‘Length v’s Performance Guide’
