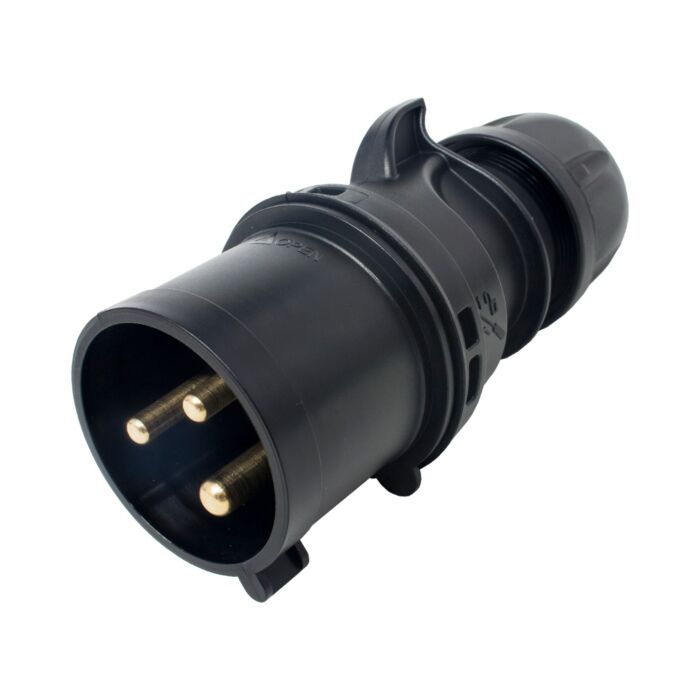

PCE 32amp 2P+E CEE Midnight Black Cable Mount Male Plug. IP44 (023-6X)
£10.56
In stock
We have 20 items in stock!
SKU
MAINS_PCE.32A.PLUG.BLACK
Multibuy discounts calculated at checkout
- Buy 5 for £10.03 each and save 5%
- Buy 10 for £9.50 each and save 10%
- Buy 15 for £8.98 each and save 15%
- Buy 20 for £8.45 each and save 20%
Typically used in the Events sector due to the 'stealth' black housing. The PCE SHARK series is state-of-the-art in power distribution: extremely robust in design, fine-mechanically and ergonomically designed and is available in 16 and 32 Amp with 3, 4 and 5 pole versions. The PCE Shark series is designed to meet all application requirements
Typically used in the Events sector due to the 'stealth' black housing. The PCE SHARK series is state-of-the-art in power distribution: extremely robust in design, fine-mechanically and ergonomically designed and is available in 16 and 32 Amp with 3, 4 and 5 pole versions. The PCE Shark series is designed to meet all application requirements
PCE is specialized in the production of industrial plugs, sockets and power distribution boxes. During the past few years, the company has gone through a phase of rapid development and is now one of the world’s leading manufacturers of CEE IEC60309 plugs, sockets and accessories.
- Straight Plug 2P+E 230V 32A IP44
- with screw terminals
- housing material: PA6
- contacts: brass
- Ip44
- 'Twist Lock' cable gland
- Commando Socket, BS4343, IEC 60309.
- CENLEC as EN 60309
- Socket-outlets and couplers for industrial purposes
PCE plugs and sockets are produced from POLYAMIDE 6. The main characteristics of this material are:
- excellent impact resistance combined with high rigidity and solidity,
- high thermal stability (self-extinguishing),
- very good insulating qualities,
- high disruptive strength,
- high abrasion resistance,
- high weathering resistance,
- very good chemical resistance to various chemicals,
- free from cadmium and halogen (fluorine, chlorine, bromine, jodine, astatine)
- conform to RoHS-directiv 2011/65/EU
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Connection Type | CEEform Cable Mount |
| Mounting Method | Cable Mount - Screw Terminal |
| Contact Material | Solid Brass |
| Number of Contacts | 3 Pole |
| Current Rating | 32 amps |
| Voltage Rating | 230-240v |
| IP Rating | IP44 |
| Pack Quantity | Pack of 1 |
