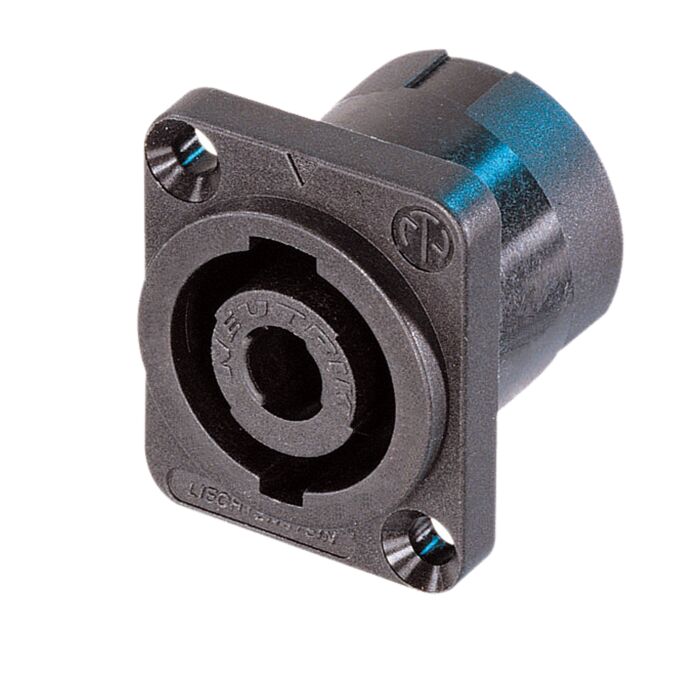

Neutrik NL4MP Male 4 Pole Speakon Chassis Panel Mount. Plastic

NL4MP

4 pole chassis connector, black D-size flange, countersunk thru holes, 3/16" flat tabs

The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.

Features & Benefits

• Current rating 30 A rms
• Glass reinforced materials make it extremely robust and dependable
• Precise keyway for secure mating
• Accurate twist lock latching system
• Metal insert in locking area
• Airtight design - optimized for speaker applications
• Branded with unique hologram - guarantees genuine and authentic Neutrik product

Technical Info

Electrical

• Contact resistance≤ 3 mΩ (inner) (after lifetime)
• Dielectric strength - 4 kVdc (peak)
• Insulation resistance> 1 GΩ (after dampheat)
• Rated current per contact - 30 A rms continuous
• Rated current per contact - 40 A audiosignal, duty cycle 50 %
• Rated voltage - 250 V (Insulation)

Attention - speakON is NOT to be used as an AC mains or power supply connector!

Mechanical

• Lifetime > 5000 mating cycles
• Locking device - Quick Lock
• Chassis shape - D
• Layout - standard hole position, thru holes

Material

• Contact plating- 4 µm Ag
• Contacts - Bronze (CuSn6)
• Shell - Polyamide (PA 6 30 % GR) black

Environmental

• Flammability - UL 94 HB
• Solderability - Complies with IEC 68-2-20
• Temperature range -30 °C to +80 °C
