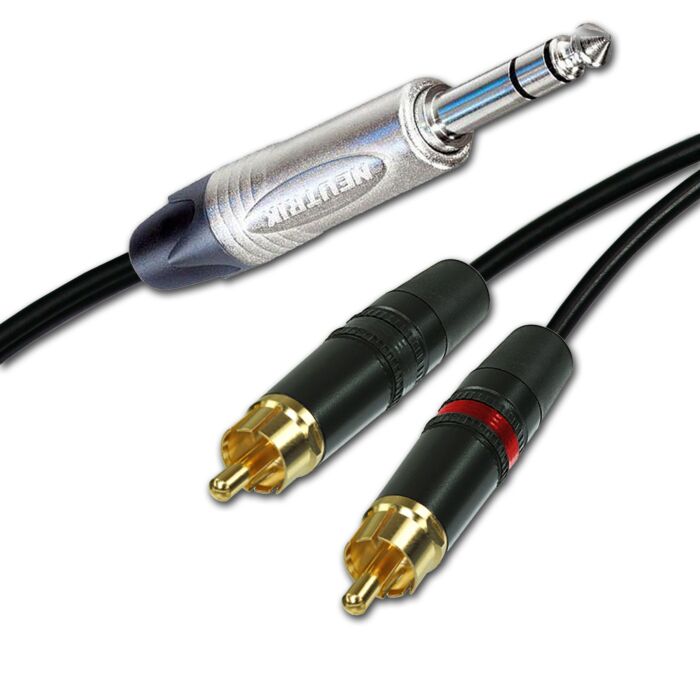

Neutrik TRS Jack Split into Dual RCA Phonos. Stereo Splitter Summing Cable
As low as
£19.14
In stock
SKU
NP3X-SOONYX-2xNYS373
Multibuy discounts calculated at checkout
This is a High quality signal lead that will connect any device with a Stereo (TRS) jack output that needs to be split into two independent mono/unbalanced signals, Left/Right, Send/Return, Tip/Ring. So making it the ideal solution for ‘Insert leads’, ‘Stereo Guitar Leads’ and ‘Splitter Leads’.
This is a High quality signal lead that will connect any device with a Stereo (TRS) jack output that needs to be split into two independent mono/unbalanced signals, Left/Right, Send/Return, Tip/Ring. So making it the ideal solution for ‘Insert leads’, ‘Stereo Guitar Leads’ and ‘Splitter Leads’.
This is a High quality signal lead that will connect any device with a Stereo (TRS) jack output that needs to be split into two independent mono/unbalanced signals, Left/Right, Send/Return, Tip/Ring. So making it the ideal solution for ‘Insert leads’, ‘Stereo Guitar Leads’ and ‘Splitter Leads’.
The Neutrik TRS jacks are an industry standard product whose reputation speaks for itself, the cable retention inside these jacks is a unique ‘Chuck Type’ that ratchets itself onto the cable. The transparency and depth of sound that you get with the Sommer Onyx 2025 Twin cable and the durability of the connectors make for an excellent lead.
The cable is wired with the ‘ring’ of the Jack going to the ‘right’ RCA that is marked red.
**This is NOT a balanced lead.
We sell these leads in a variety of combinations; please see in store for the full selection.
- Tour Grade Neutrik NP3X Silver 1/4" TRS Jack
- 2x) REAN dual NYS373 RCA / Phono's. Colour coded for 'Left and Right'
- Sommer Onyx 2025 twin shotgun cable
- Cable split at approximately 15cm (can be easily modified)
- Manufactured using 3.5% silver solder
| Delivery Speed | Made to Order - Next Day Delivery Available |
|---|---|
| Cable Capacitance | Capac. cond./shield. per 1 m - 120 pF |
| Cable Resistance | 1 km - 115 Ohm |
| Cable Conductor | Copper spiral shielding Shielding factor - 90 % No. of inner conductors - 2 x 1 x 0,25 mm2 |
| Cable Screening | - |
| Cable Jacket | Jacket, outer dimension PVC - 4,8 x 9,2 mm |
| Overall Diameter | - |
| Cable Brand | Sommer |
| Application | Tour & Studio Grade |
| Contact Material | Silver Plated |
| Number of Contacts | 3 Pole |
