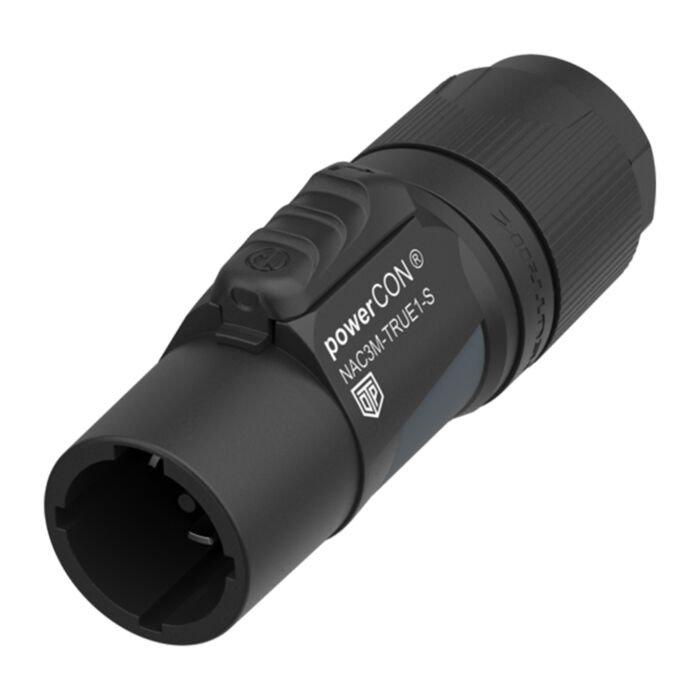

Neutrik PowerCON True1 Locking Male Small Cable Entry 16A Connector. NAC3M-TRUE1-S
£13.32
In stock
We have 1500 items in stock!
SKU
Mains_NAC3M-TRUE1-S
Multibuy discounts calculated at checkout
Small Cable Entry. The powerCON TRUE1 is a locking true mains connector for harsh and demanding applications.
Small Cable Entry. The powerCON TRUE1 is a locking true mains connector for harsh and demanding applications.
The powerCON TRUE1 is a locking true mains connector for harsh and demanding applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features & Benefits
- Heavy duty sealed power connector for harsh and demanding environment
- Uses high impact UV-resistant materials
- Lockable single phase connector
- Extremely robust and reliable
- ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
- UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
- IP65 and IP67 (mated or with closed cap)
- True mains connector with breaking capacity (CBC)
- Easy and reliable twist lock system
- Unique NEUTRIK locking bushing and strain relief for cable diameters 10 mm to 16 mm (0.39 – 0.63 inches)
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Connection Type | Neutrik True1 Powercon |
| Mounting Method | Cable Mount - Solder |
| Contact Material | Copper Plated |
| Number of Contacts | 3 Pole |
| Current Rating | 16 amps |
| IP Rating | IP67 |
| Data Sheet URL | Download Data Sheet |
