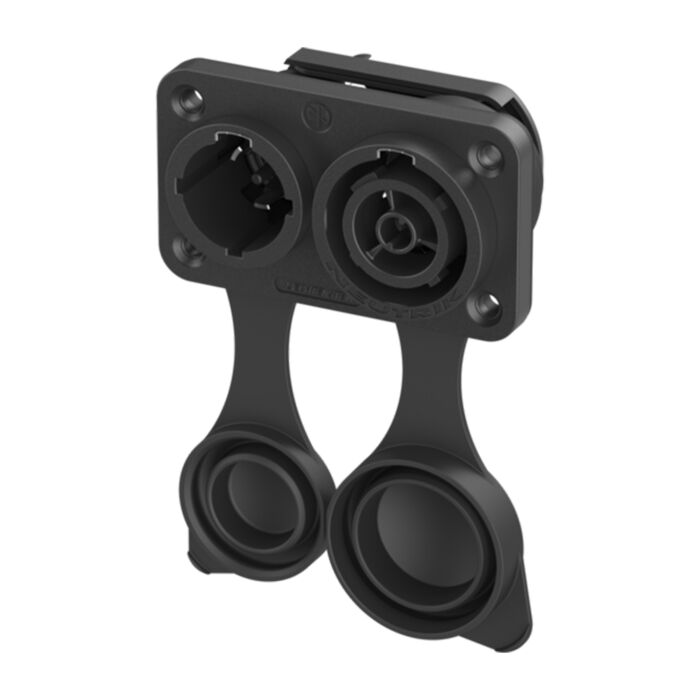

Neutrik PowerCON True1 Airtight Duplex Mains Power Chassis Connector. NAC3PX-TRUE1
£16.93
In stock
We have 200 items in stock!
SKU
Chassis_NAC3PX-TRUE1
Multibuy discounts calculated at checkout
The "powerCON TRUE1 airtight" is a locking true mains connector for harsh and demanding applications.
The "powerCON TRUE1 airtight" is a locking true mains connector for harsh and demanding applications.
The "powerCON TRUE1 airtight" is a locking true mains connector for harsh and demanding applications. This innovative product is part of the powerCON-TRUE1 product group and belongs to our premium powerCON-TRUE1 line. With an impressive array of features and a particular focus on protection and performance, the powerCON airtight" is the choice for professionals who require absolute reliability. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection.
With the powerCON TRUE1 airtight, you can count on a secure connection, even in the most extreme conditions.
The powerCON TRUE1 is a connector series with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.
Features & Benefits
- Airtightness for production line tests to ensure TRUE OUTDOOR PROTECTION on devices
- Heavy duty sealed power connector for harsh and demanding environment
- Uses high impact UV-resistant materials
- Extremely robust and reliable
- ENEC and VDE certified according to IEC 60320-1 and EN IEC 60320-1
- UL and CSA Certified According to UL 60320-1 and CSA 22.2 No. 60320-1
- IP65, IP66 and IP67 (mated or with closed cap)
- True mains connector with breaking capacity (CBC)
- Easy and reliable twist lock system
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Connection Type | Neutrik True1 Powercon |
| Mounting Method | Panel Mount - Screw Terminal |
| Contact Material | Copper Plated |
| Number of Contacts | 3 Pole |
| Current Rating | 16 amps |
| IP Rating | IP67 |
| Data Sheet URL | Download Data Sheet |
