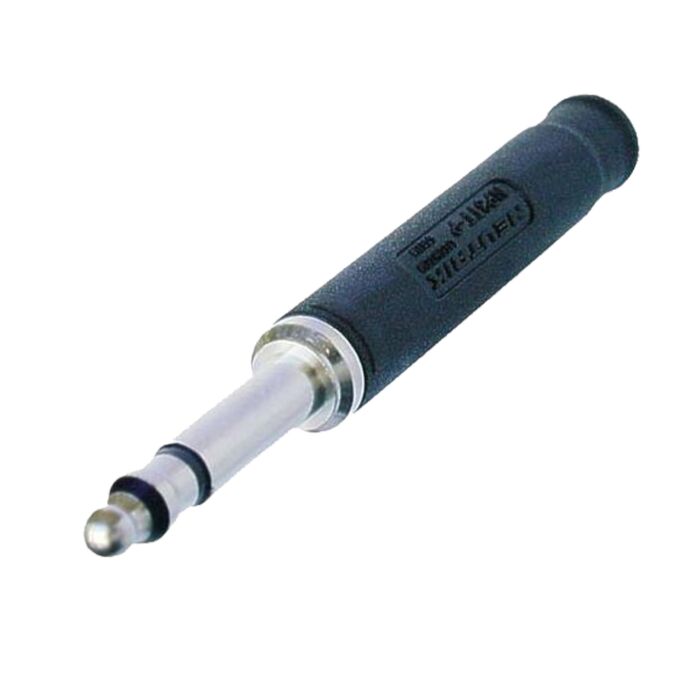

Neutrik NP3TT-P-B 4.4mm TT Bantam Jack Connector. Black. Balanced Jack Pro.
£6.82
In stock
We have 263 items in stock!
SKU
BANTAM_NP3TT-P-B
Multibuy discounts calculated at checkout
- Buy 5 for £6.48 each and save 5%
- Buy 10 for £6.14 each and save 10%
- Buy 15 for £5.80 each and save 15%
- Buy 20 for £5.46 each and save 20%
4.4 mm (0.173") tiny telefone plug bantam type, solder termination for T+R, hex crimp of S with a standard RG58 crimp tool, black plastic housing, Nickel contacts. Ideal use with TT patch panels.
4.4 mm (0.173") tiny telefone plug bantam type, solder termination for T+R, hex crimp of S with a standard RG58 crimp tool, black plastic housing, Nickel contacts. Ideal use with TT patch panels.
Features & Benefits
- Designed for pro audio applications
- Robust egonomic design - long-lasting and depenable
- Standard HEX crimp cable clamp for shield termination and cable retention
- Colored sleeves available for coding and marking
Technical Information
Electrical
- Contact resistance - depends on mating connector mΩ (inner)
- Dielectric strength - 1 kVdc
- Insulation resistance > 2 GΩ (initial)
- Rated current per contact - depends on mating connector A
- Rated voltage - 50 V
Mechanical
- Cable O.D. 4 - 4.8 mm
- Crimp Mass 5,41 Hex crimp (shield) acc. IEC 60803 (die designation D)
- Lifetime > 1000 mating cycles
- Wiresize - 0,25 mm²
- Wiresize - 24 AWG
- Wiring - Solder contacts
Material
- Bushing - Polyacetal (POM) + PU
- Contact plating - 2 µm Ni (Su)
- Contacts - Bronze (CuSn6) (Tip)
- Insert - Polyamide (PA 6.6 30 % GR)
- Shell - Brass (CuZn39Pb3)
- Shell plating - Polyamide (6 30% GR) (black)
Environmental
- Standard compliance - MIL-P-642/13
- Solderability - Complies with IEC 68-2-20
- Temperature range - -20 °C to +65 °C
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Contact Material | Silver Plated |
| Number of Contacts | 3 Pole |
