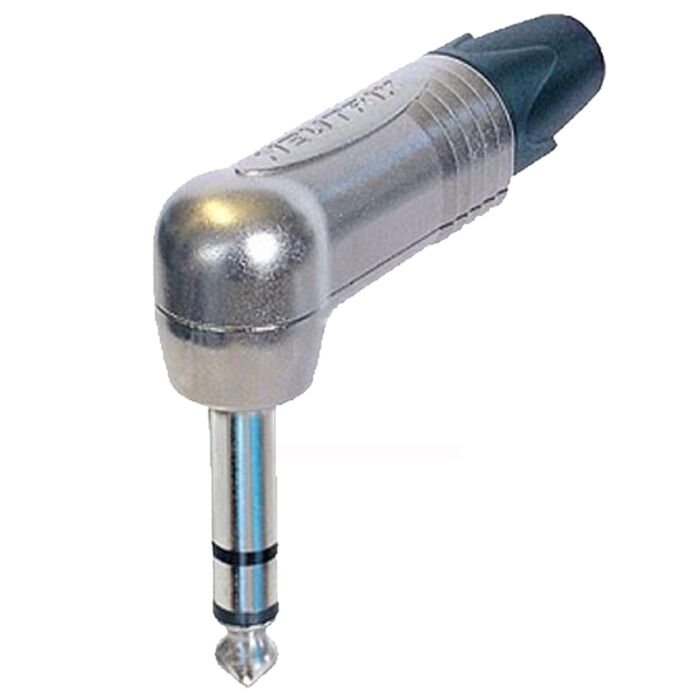

Neutrik NP3RX Silver Quarter TRS Angled Jack Plug Connector

NP3RX

3 pole right-angle 1/4" professional phone plug, nickel contacts, nickel shell

The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jackfields (15.88 mm jack pitch).

The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.

The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.

Features & Benefits

• All metal housing eliminates the plastic cover of the predecessor NP*RCS and improves further durability and EMI protection
• Extra slim 1/4" plug for highest packing density
• Robust diecast shell in stylish design
• Proven chuck type strain relief for reliable cable retention
• Sleek design for best handling convenience
• Precision machined one-piece contacts - avoid hook up of tip contact

Technical Information

Electrical

• Contact resistance - depends on mating connector mΩ (inner)
• Dielectric strength 1 kVdc
• Insulation resistance GΩ (initial)
• Rated current per contact - depends on mating connector A
• Rated voltage 50 V

Mechanical

• Cable O.D. - 4 - 7 mm
• Lifetime - 1000 mating cycles
• Wiresize - 1 mm²
• Wiresize - 18 AWG
• Wiring - Solder contacts

Material

• Bushing
• Polyacetal (POM) + PU
• Contact plating 2 µm Ni (Su)
• Contacts Brass (CuZn39Pb3)
• Insert Polyamide (PA 6.6 30 % GR)
• Shell Zinc diecast (ZnAl4Cu1)
• Shell plating Nickel
• Strain relief Polyacetal (POM)

Environmental

• Standard compliance IEC 60603-11 / EIA RS-453

Solderability

• Complies with IEC 68-2-20
• Temperature range -20 °C to +65 °C
