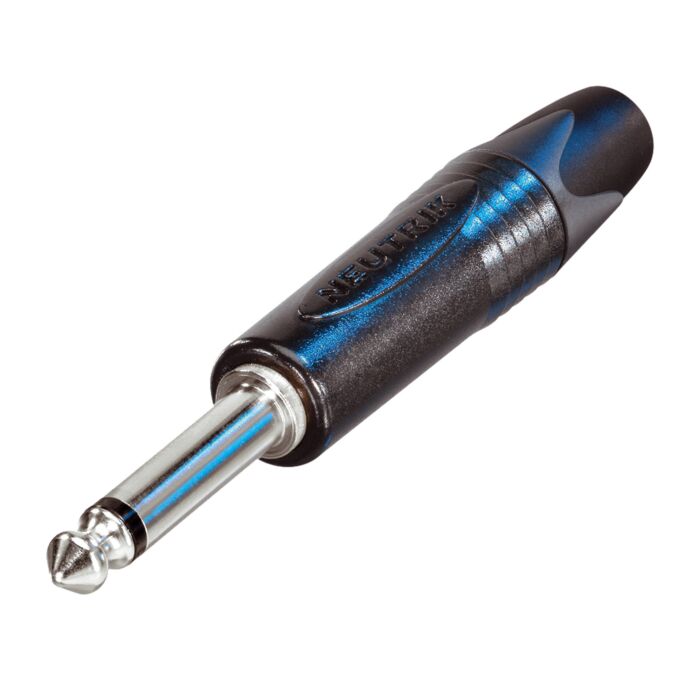

Neutrik NP2X-BAG Black Shell. Silver Pins. Quarter Mono Jack Straight Plug Connector
Multibuy discounts calculated at checkout
- Buy 5 for £4.26 each and save 5%
- Buy 10 for £4.03 each and save 10%
- Buy 15 for £3.81 each and save 15%
- Buy 20 for £3.58 each and save 20%
The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market.
The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market.
NP2X-BAG
2 pole 1/4" professional phone plug, nickel contacts, black shell
The heavy duty professional phone plug series improves on the design of the existing C series by offering the thinnest available A-gauge 1/4" plug with unique Neutrik chuck type strain relief on the market. The slimline shell with a width of 14.5 mm meets the most recent requirements for highest density jack fields (15.88 mm jack pitch).
The precise machined one-piece tip contact without rivets makes it unique and avoids hook up in a socket or break off the tip.
The Plug X Series serves all applications such as guitar applications, audio cables, snakes, speakers, amplifiers and mixing desks.
Features & Benefits
- Extra slim 1/4" plug for highest packing density
- Robust diecast shell in stylish design
- Proven chuck type strain relief for reliable cable retention
- Sleek design for best handling convenience
- Precision machined one-piece contacts - avoid hook up of tip contact
Technical Spec
Electrical
- Contact resistance - depends on mating connector mΩ
- Dielectric strength - 1 kVdc
- Insulation resistance - > 2 GΩ (initial)
- Rated current per contact - depends on mating connector A
- Rated voltage - < 50 V
Mechanical
- Cable O.D. - 4 - 7 mm
- Lifetime - > 1000 mating cycles
- Wiresize - 1 mm²
- Wiresize - 18 AWG
- Wiring - Solder contacts
Material
- Bushing - Polyacetal (POM) + PU
- Contact plating - 2 µm Ni (Su)
- Contacts - Brass (CuZn39Pb3)
- Insert - Polyamide (PA 6.6 30 % GR)
- Shell - Zinc diecast (ZnAl4Cu1)
- Shell plating - Black chromium
- Strain relief - Polyacetal (POM)
Environmental
- Standard compliance - IEC 60603-11 / EIA RS-453
- Solderability - Complies with IEC 68-2-20
- Temperature range - -20 °C to +65 °C
Delivery Speed | Next Day delivery available if 'In Stock' |
---|---|
Mounting Method | Cable Mount - Solder |
Series Range Name | Neutrik PX Series |
Contact Material | Silver Plated |
Number of Contacts | 2 Pole |
Pack Quantity | Pack of 1 |
Manufacturer URL | Download Data Sheet |
Data Sheet URL | Download Data Sheet |
