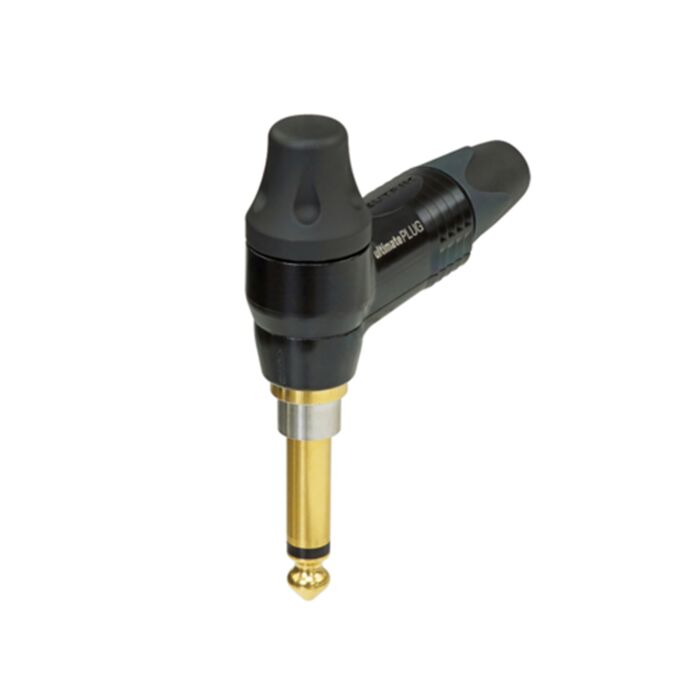

Neutrik NP2RX-Ultimate TimbrePlug & SilentPlug. Angled Mono Jack Plug. Quarter Connector
£48.40
In stock
We have 20 items in stock!
SKU
JACKS_NP2RX-ULTIMATE
Multibuy discounts calculated at checkout
- Buy 5 for £45.98 each and save 5%
- Buy 10 for £43.56 each and save 10%
- Buy 15 for £41.14 each and save 15%
- Buy 20 for £38.72 each and save 20%
2 pole 1/4" professional phone plug, right-angle, gold plated contacts, black plated. The ultimatePLUG combines the functions of the silentPLUG and timbrePLUG in one product.
2 pole 1/4" professional phone plug, right-angle, gold plated contacts, black plated. The ultimatePLUG combines the functions of the silentPLUG and timbrePLUG in one product.
Features & Benefits
- Standard timbre of the cable plus three additional sound characteristics
- Avoid pops and squeals
- Hermetically sealed switching contacts
- Lifetime beyond 10'000 mating cycles
- Slim right-angle plug with industry proven and reliable chuck type strain relief
- Sleek attractive design for convenient handling
- Gold plug finger, precision machined one piece contacts
Technical Information
Title - NP2RX-ULTIMATE
Connection Type - Plug
Gender - male
Electrical
- Contact resistance - mΩ
- Dielectric strength - 100 kVdc
- Insulation resistance - > 2 GΩ (initial), ≥ 1 GΩ (after damp heat test)
- Contact resistance - depends on mating connector
- Rated current per contact - depends on mating connector
Mechanical
- Cable O.D. - 4 - 7 mm
- Lifetime - > 1000 mating cycles
- Wiresize - 1 mm²
- Wiresize - 18 AWG
- Wiring - Solder contacts
Material
- Bushing - POM + PU
- Contact plating - Au
- Contacts - Brass (CuZn39Pb3)
- Gasket - PA 6.6 30 % GF
- Shell - Zinc diecast (ZnAl4Cu1)
- Shell plating - Black chromium
- Strain relief - POM
Environmental
- Solderability Complies with -IEC 68-2-20
- Temperature range - -20 °C to +65 °C
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Cable Mount - Solder |
| Series Range Name | Neutrik PX Series |
| Contact Material | Gold Plated |
| Number of Contacts | 2 Pole |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
