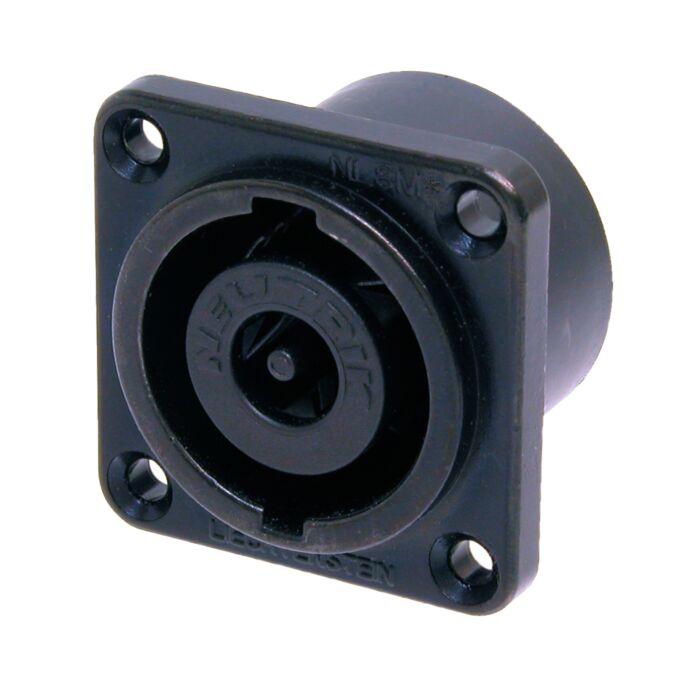

Neutrik NL8MPR-BAG Male 8 Pole Speakon Chassis Panel Mount
£11.78
In stock
We have 107 items in stock!
SKU
CHASSIS_NL8MPR-BAG
Multibuy discounts calculated at checkout
- Buy 5 for £11.19 each and save 5%
- Buy 10 for £10.60 each and save 10%
- Buy 15 for £10.01 each and save 15%
- Buy 20 for £9.42 each and save 20%
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
The speakON panel mount connectors are the standard chassis connectors for loudspeaker / amplifier interconnections. They feature a unique metal locking system, making contact only once fully locked. The speakON receptacles are robust, versatile and easy to terminate.
NL8MPR-BAG
8 pole chassis connector, black chrome metal square G-size flange, countersunk thru holes, 3/16" flat tabs
Features & Benefits
- Current rating 30 A rms
- Glass reinforced materials make it extremely robust and dependable
- Precise keyway for secure mating
- Accurate twist lock latching system
- Metal flange
- Airtight design - optimized for speaker applications
Technical Info
Title - NL8MPR-BAG
Connection Type - speakON
Gender - male
Electrical
- Contact resistance- ≤ 3 mΩ (after lifetime)
- Dielectric strength - 4 kVdc (peak)
- Insulation resistance - > 1 GΩ (after dampheat)
- Rated current per contact - 30 A rms continuous
- Rated current per contact - 40 A audio signal, duty cycle 50 %
- Rated voltage - 250 V (Insulation)
Attention - speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
- Lifetime - > 5000 mating cycles
- Locking device - Quick Lock
- Chassis shape - square G-size flange
- Layout - four thru holes
Material
- Contact plating - 4 µm Ag
- Contacts - Bronze (CuSn6)
- Shell- Polyamide (PA 6 30 % GR) black chrome
Environmental
- Flammability- UL 94 HB
- Solderability - Complies with IEC 68-2-20
- Temperature range- -30 °C to +80 °C
| Delivery Speed | Next Day delivery available if 'In Stock' |
|---|---|
| Mounting Method | Panel Mount - Flat Tabs |
| Contact Material | Silver Plated |
| Number of Contacts | 8 Pole |
| Pack Quantity | Pack of 1 |
| Manufacturer URL | Download Data Sheet |
| Data Sheet URL | Download Data Sheet |
