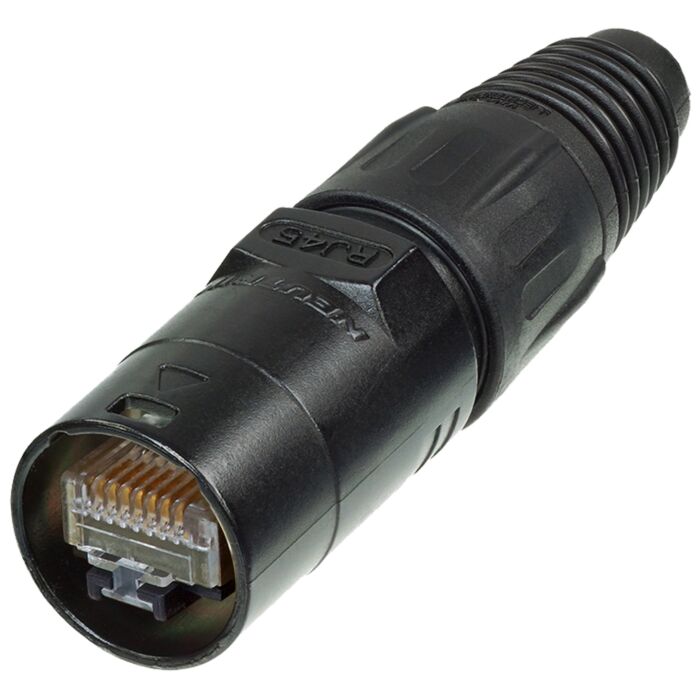

Neutrik NE8MX-B-1 Ethercon Connector. Black Housing. RJ45 Case

Cable connector carrier consists of a black chromium shell, fixing disk, chuck and boot. The boot (same as X-Series) is suitable for cable diameters from 3.5 - 8 mm. For non preassembled cables only. Cable connector carrier does not include a RJ45 plug.

The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.

Attention! Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Features & Benefits

• The RJ45 system for harsh and demanding environment
• Cable connector carrier accepts the most common RJ45 plugs (see list at downloads)
• Rugged diecast shell and unique chuck type strain relief
• Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ 45 connectors
• O-ring gasket to achieve IP54 water protection in combination with SE8FD sealing kit
• Accessories include color coded boots in 9 standard colors

Mechanical

• Cable O.D. - max. 8 mm 0.315'
• Insertion force - ≤ 20 N
• Withdrawal force - ≤ 20 N
• Lifetime - > 1000 mating cycles

Material

• Boot - Polyamide (PA 6)
• Shell - Zinc diecast (ZnAl4Cu1)
• Shell plating - Black chromium
• Strain relief - Polyacetal (POM)
