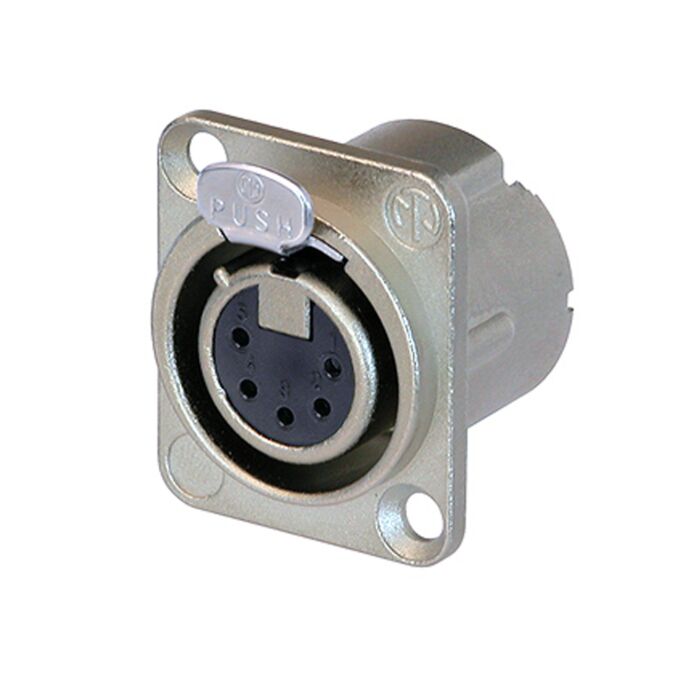

Neutrik 5 Pin NC5FD-LX Female XLR Chassis Connector

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding

• All metal housing offers best overall RF protection and electromagnetic shielding
• Duplex ground contact for excellent contact integrity between chassis and cable connector
• Female contact incorporates a solder barrier to prevent solder running into the contact mating area
• Larger solder contacts for easier termination
• Optional connection to easily join pin1 to chassis ground
• D-style housing provides installation compatibility with industry standard D mounting dimensions

• Connection Type - XLR
• Gender - female
• Capacitance between contacts - ≤ 7 pF
• Contact resistance - ≤ 5 mΩ
• Dielectric strength - 1,5 kVdc
• Insulation resistance - > 10 GΩ (initial)
• Rated current per contact - 10 A
• Rated voltage - < 50 V
• Insertion force - ≤ 20 N
• Withdrawal force - ≤ 20 N
• Lifetime - > 1000 mating cycles
• Wiresize - max. 1.5 mm²
• Wiresize - max. 16 AWG
• Wiring - Solder contacts
• Locking device - Latch lock
• Chassis shape - D
• Contact plating - 2 µm Ag over 2 µm Ni
• Contacts - Brass (CuZn39Pb3)
• Insert - PA66
• Locking element - Steel Ck67
• Shell - Zinc diecast (ZnAl4Cu1)
• Shell plating - Nickel
• Flammability - UL 94 V-0
• Standard compliance - IEC 61076-2-103
• Protection class - IP 40
• Solderability - Complies with IEC 68-2-20
• Temperature range - -30 °C to +80 °C
